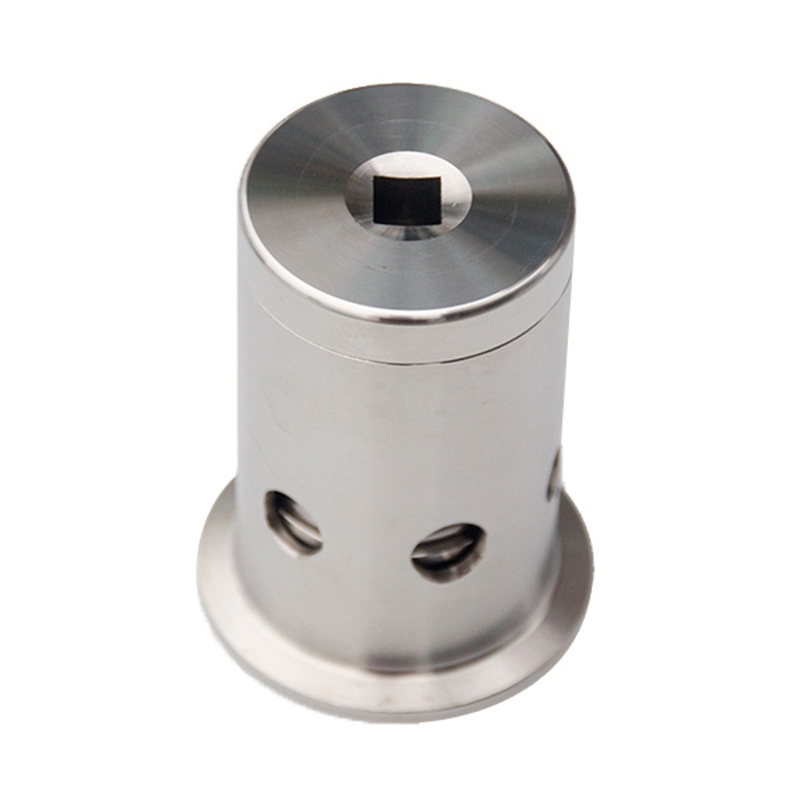

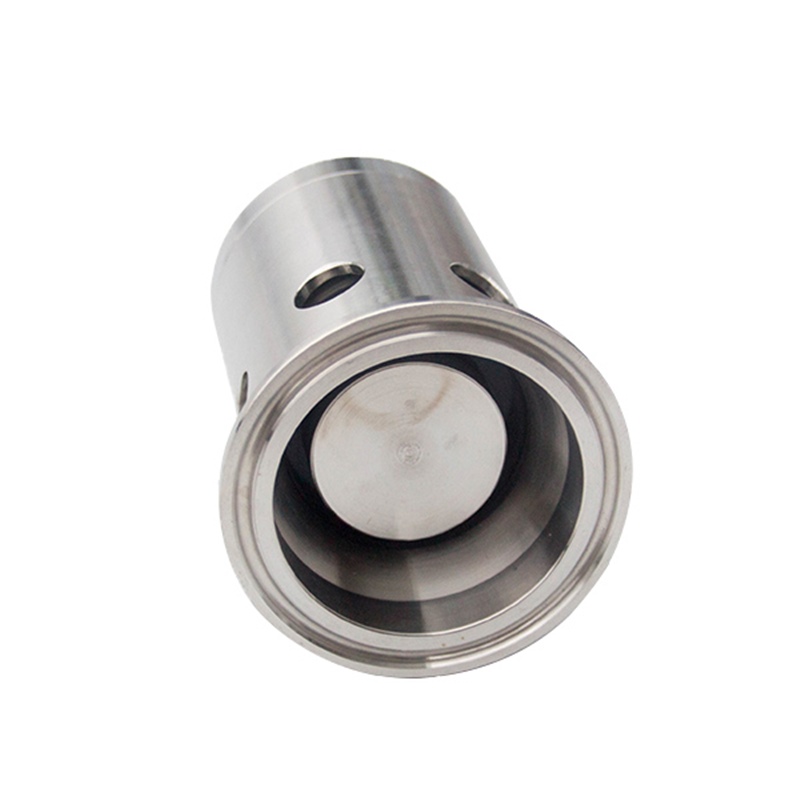

VAV01 Pressure/ Vacuum Relief Valve

VAV Series Stainless Steel Sanitary Pressure/ Vacuum Relief Valve is a self-acting device, designed for keeping tanks to work properly. It could release air out of tanks to maintain pressure, and also absorb air into tanks to be anti-vacuum.

立即查询 PDF 数据表

描述

Application

VAV Series Stainless Steel Sanitary Pressure/ Vacuum Relief Valve is a self-acting device, designed for keeping tanks to work properly. It could release air out of tanks to

maintain pressure, and also absorb air into tanks to be anti-vacuum.

Materials

Body Materials: AISI-304 or AISI-316L

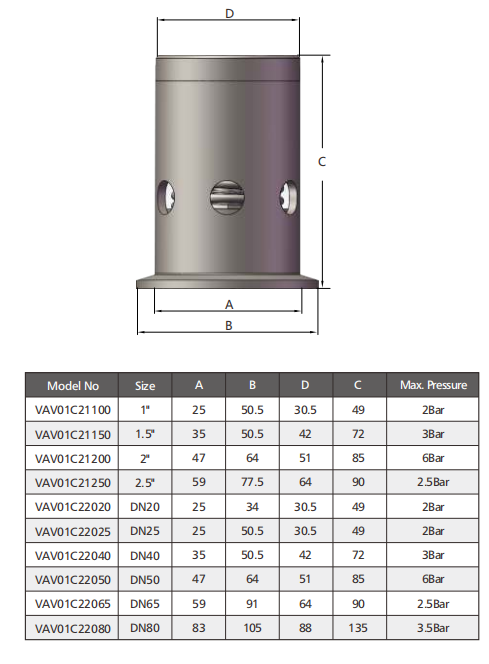

Standard Design

Available in size: 1-1.5", 2", 2.5"
Installation: supposed to be installed overhead tanks
Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE
Connection: butt-welded, clamp, or other's upon request

Technical Specification

Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production
Temperature range: medium
