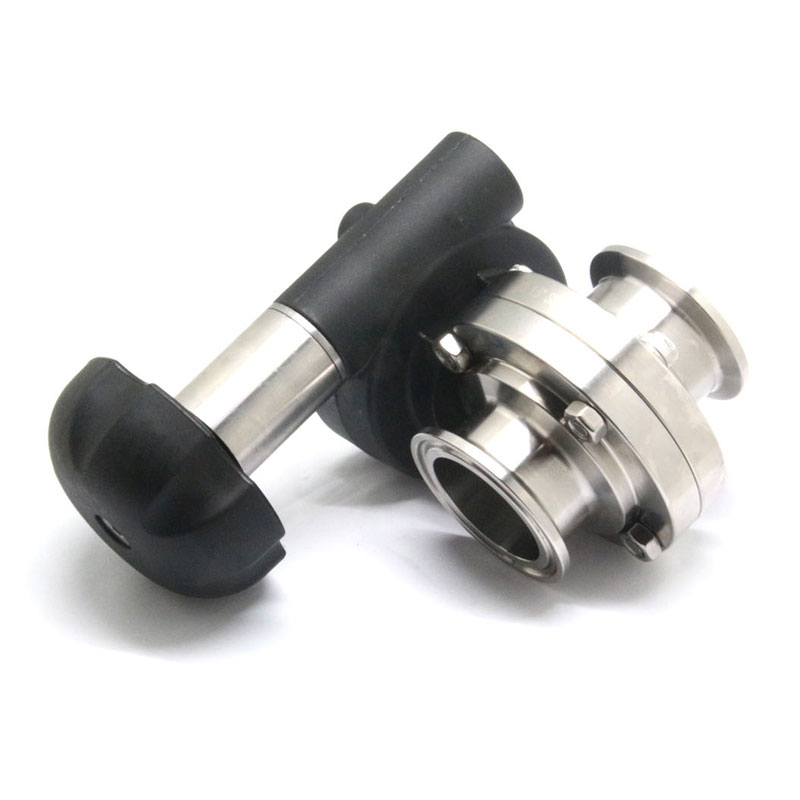

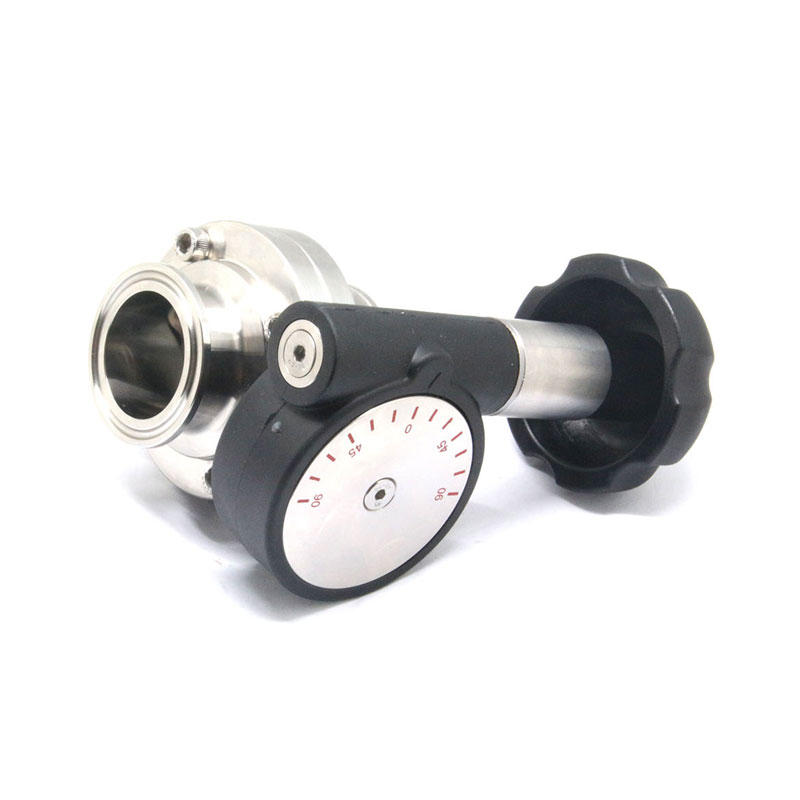

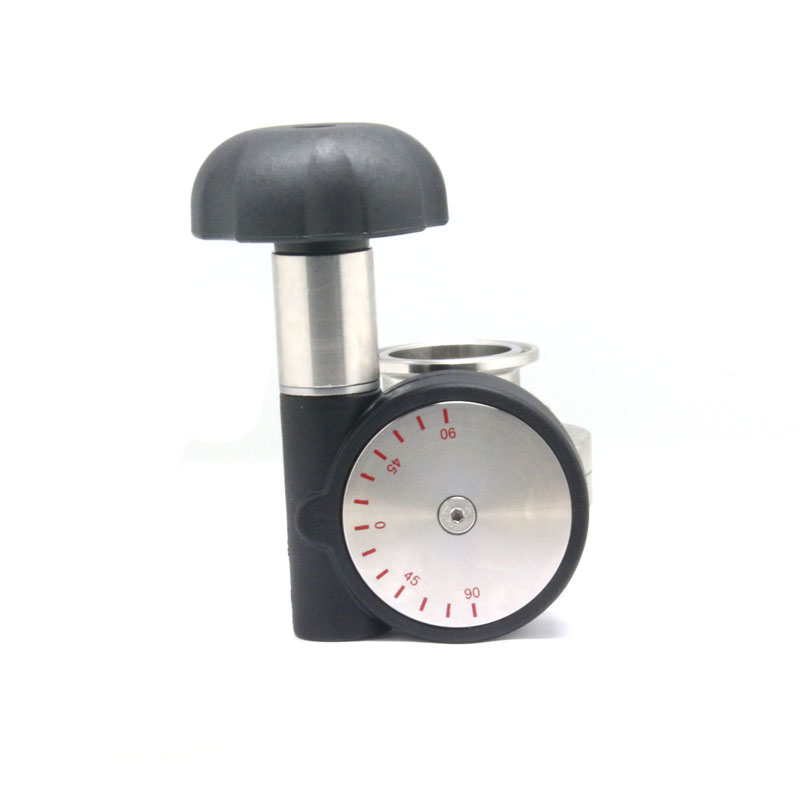

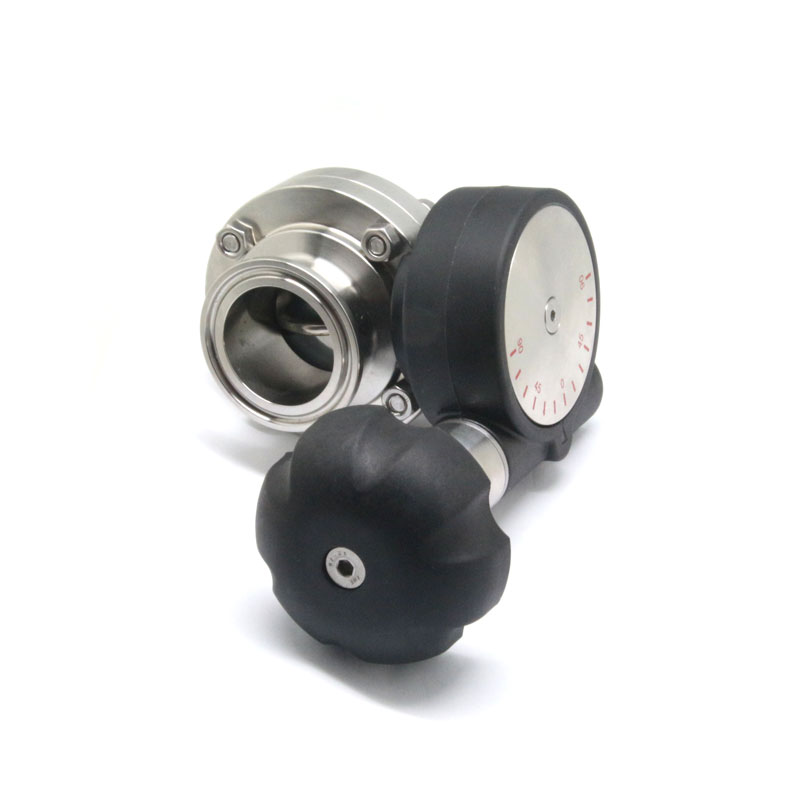

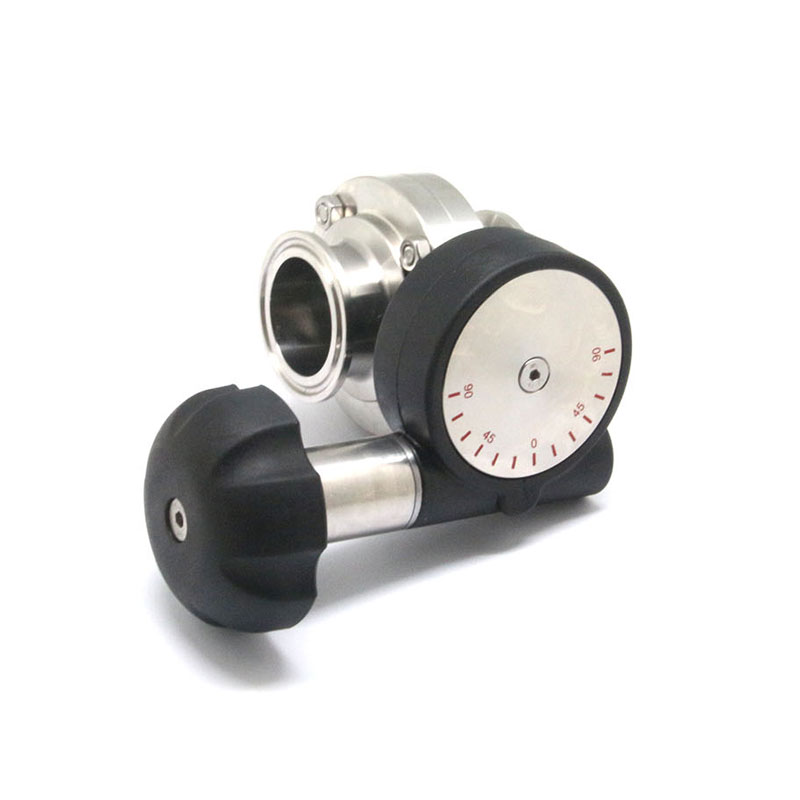

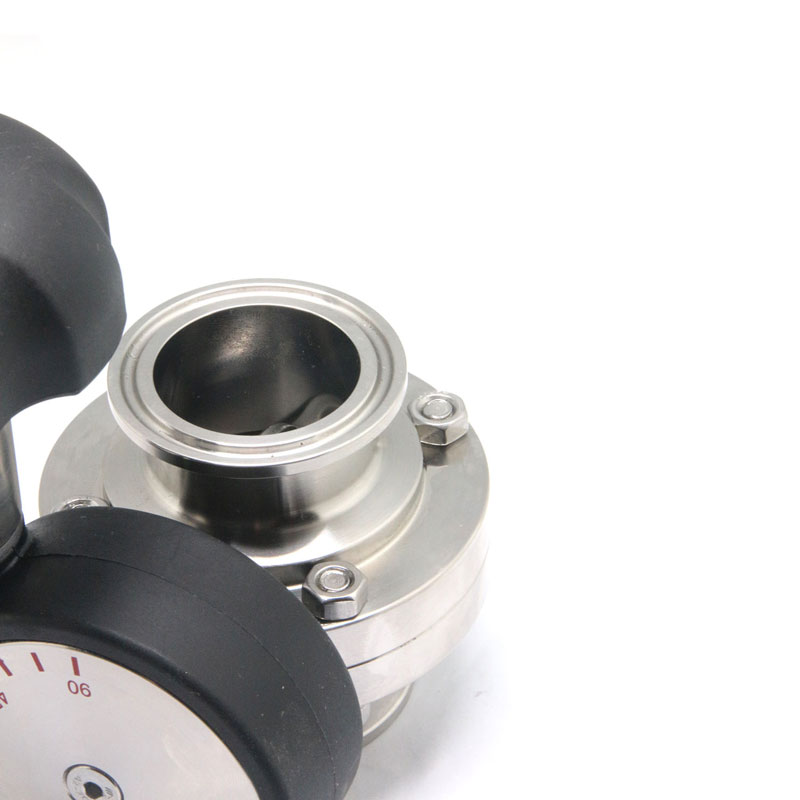

VBN Butterfly Valve With Micro Adjust Handwheel

Micro Adjust Butterfly Valve is infinitely adjustable. Perfect for those situations where precision flow rates are required, such as process piping between lauter tun and the grant. Stainless handle and spindle assembly are durable and rounded to prevent

Application

Micro Adjust Butterfly Valve is made of SS304/SS316L and is infinitely adjustable. Micro Adjust Handwheel is a very unique valve that allows you to dial in the precise flow that you require for your application.

We offer this valve in sizes 1″ to 4″ with either Silicone, EPDM or Viton seats

Materials

Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicon, EPDM, VITON, NBR

Valve seat and gasket comply with FDA 21CFR177.2600

Standard Design

Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
Available in sizes from DN15 / 1/2" to DN250 / 10"
End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.

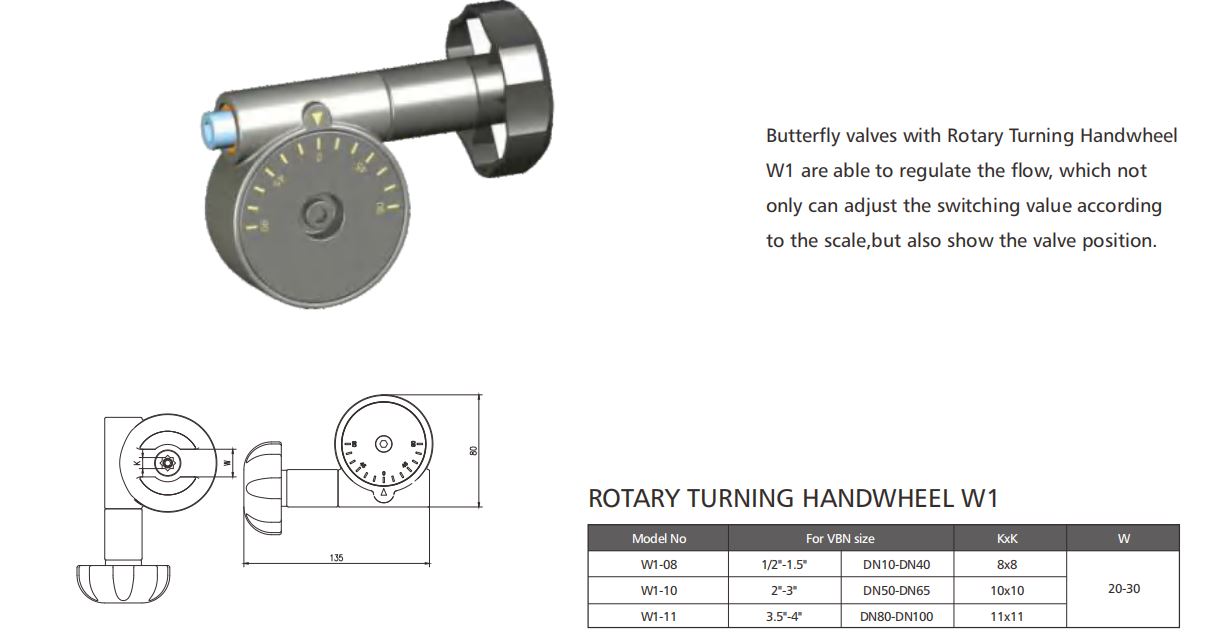

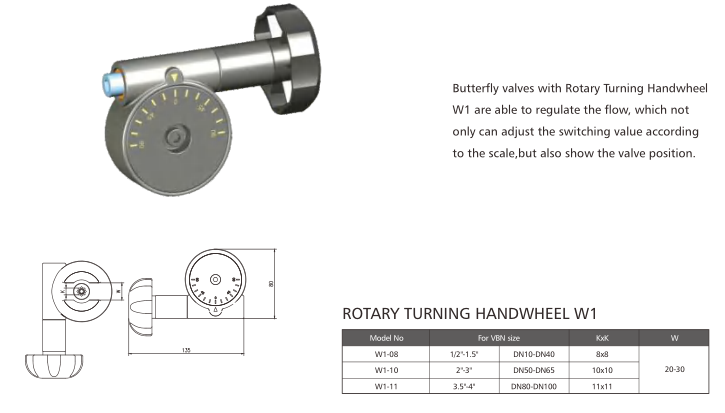

Handle: plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions)
Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
Control: position sensor, C-top controller, C-top controller (AS-I)
Manual handle, pneumatic actuator and electric actuator are interchangeable.

Technical Specification

Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Supply pressure for air actuator: 70 ~ 115psi

Parameters
Steel material	Product wetted steel parts	AISI 316L / 304 forged (1.4306 / 1.4404)	Provided with material inspection report
	Other steel parts	AISI 304
Seal material	Standard	EPDM	All seal materials comply with FDA 21CFR117.2600
	Options	VMQ / FPM
Pressure	Working pressure	≤10bar (145psi)
	Supply pressure for air actuator	5 ~ 8bar (70 ~ 116psi)
Temperature	Working temperature	EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ: -58 ~ 356°F (-50 ~ +180°C) FPM: -22 ~ 446°F (-30 ~ +230°C) Other materials are available upon request
	Sterilization temperature	302°F (150°C, Max. 20 min)
Surface treatment	Inside surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm)
	Outside surface treatment	Ra32 ~ 64µin (0.8 ~ 1.6µm)
Connection	The welding diameter	Welding ends: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.
	End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
