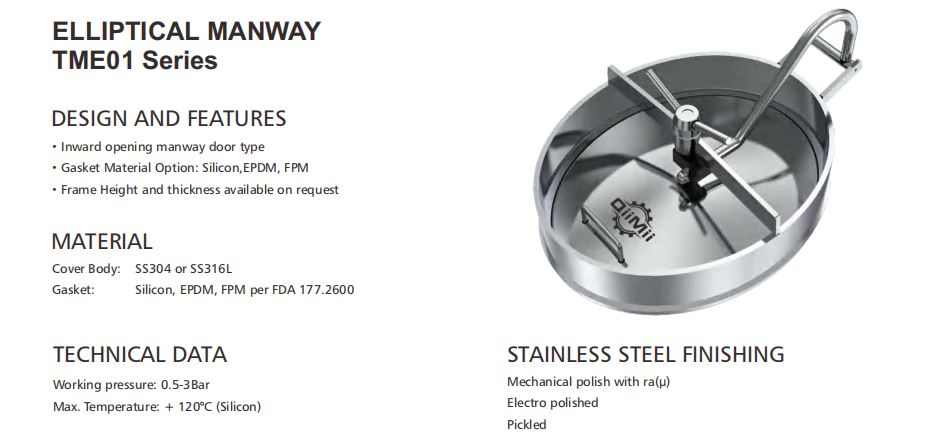

TME01 Elliptical Manhole Cover

Application

TME01 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

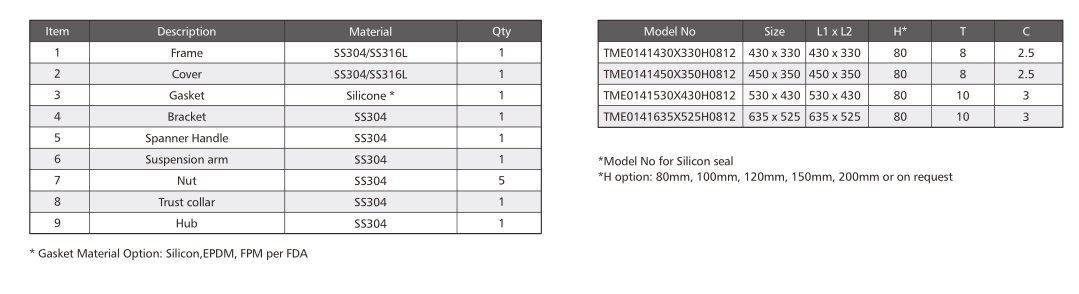

Materials

• Body Materials: AISI-304 or AISI-316L

• Gasket Material:Silicon, EPDM, FRM

• Manhole seat and gasket  comply with FDA 21CFR177.2600

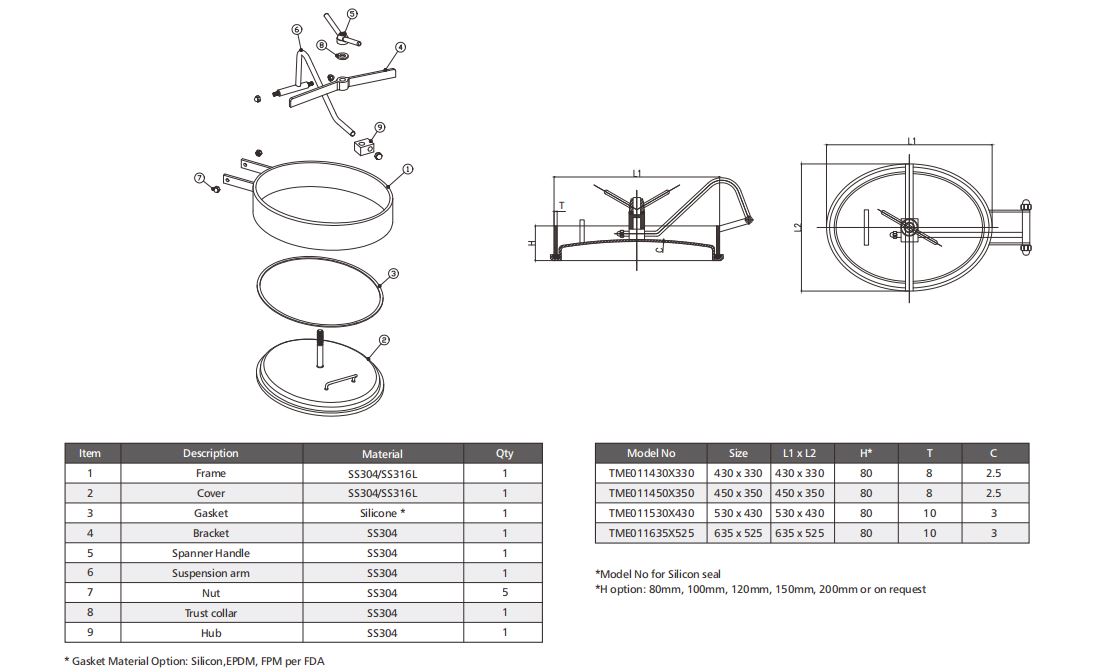

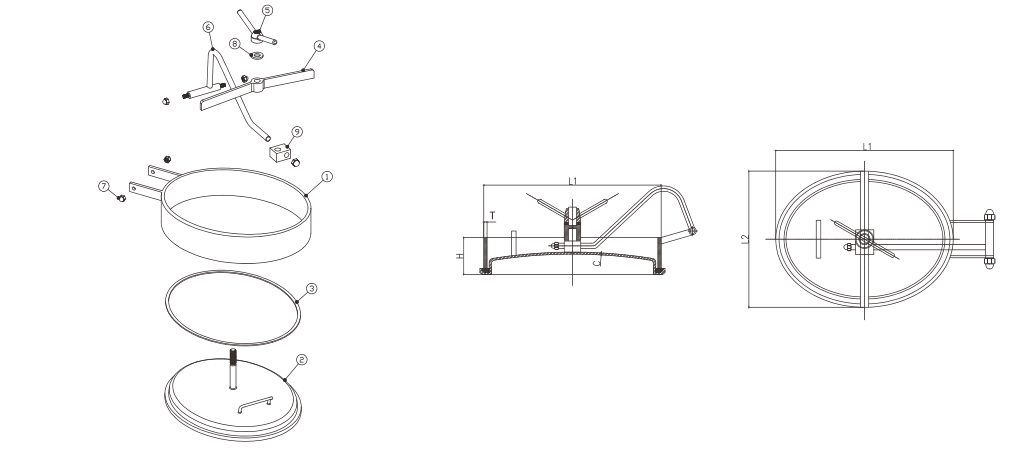

Standard Design

• Available in size: 430x330mm, 530x430mm

• Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm

• Standard thickness: 8mm

• Inward Opening

• Installation on the side surface of tank

Technical Specification

• Max. pressure: 43psi (3bar)

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: mirror inside, stain or mirror outside
