VAR Air Release Valve with Pressure Gauge

Application

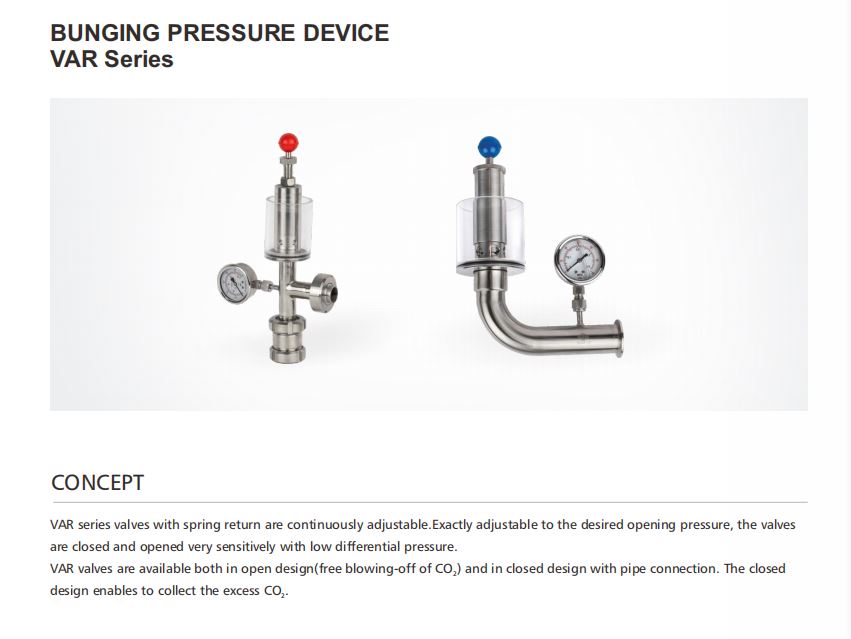

VAR Series Stainless Steel Sanitary Air Release Valve with Pressure Gauge is a self-acting device, or could be manually operated to release air out of tanks. With a pressure gauge installed, it enables pressure to be monitored with a precise numeric value.

Materials

• Body Materials: AISI-304 or AISI-316L

• Cover: specialized tempered glass

Standard Design

• Available in size: 1-1.5", 2", 2.5"

• Tube (arm) size: from 0.5" to 4"

• Default pressure scale: 0-1mpa and 0-140psi

• Installation: supposed to be installed laterally

• Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE

• Connection: butt-welded, clamp, or others upon request

Technical Specification

• Working Pressure: 14.5psi/ 1bar (standard), could be adjustable before production

• Temperature range: medium
