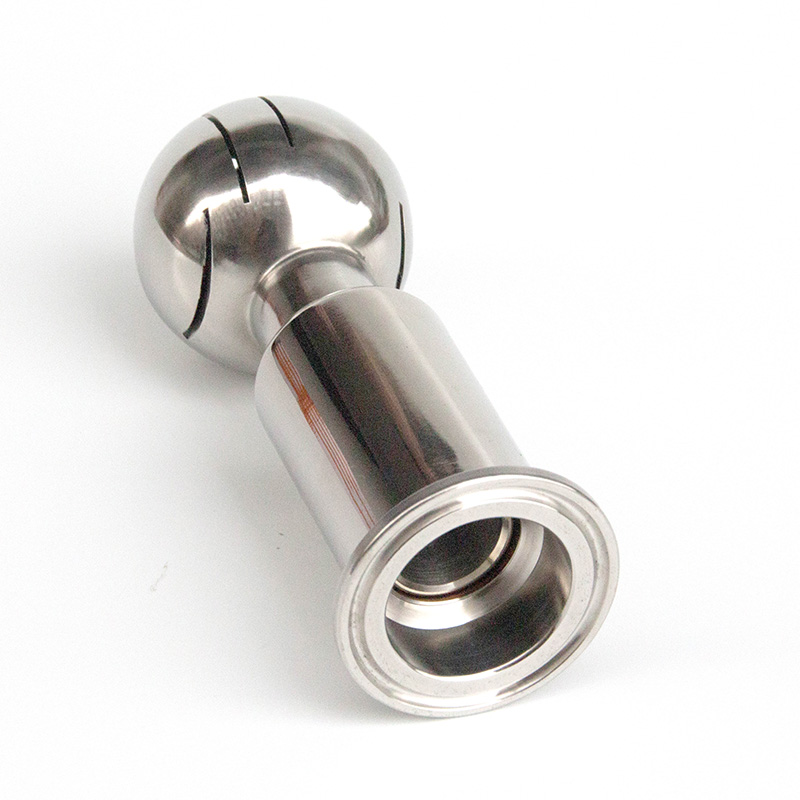

TCR Stainless Steel Rotary Tank Spray Female Cleaning Ball

Application

• TCR Series Sanitary Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving.

Materials

• Stainless Steel 304 or Stainless Steel 316L

Standard Design

• Available in size from 1"-2", DN15-DN65

• Standards: DIN, SMS, ISO / IDF

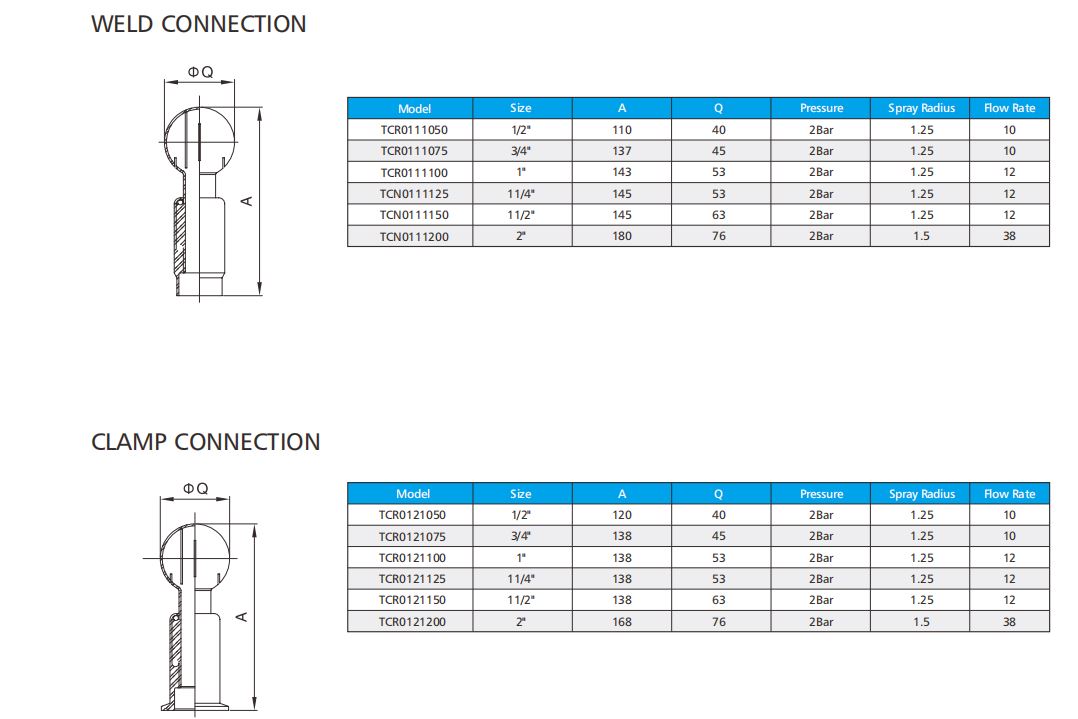

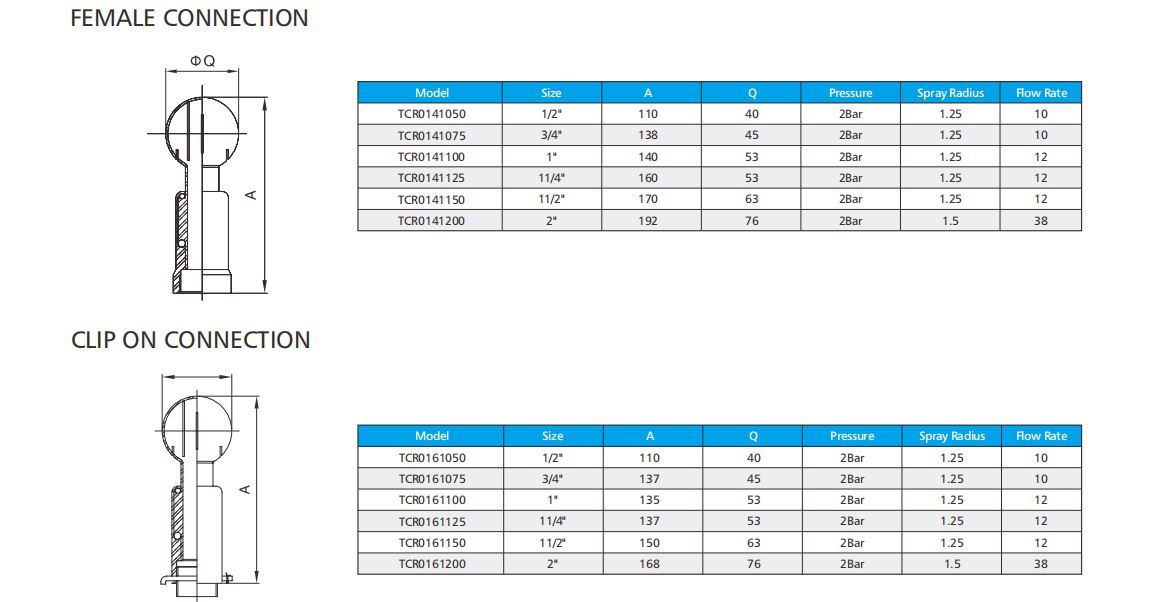

• End connections: thread or clip on

Technical Specification

• Max Temperature: 284°F (140°C)

• Working Pressure: 14.5-50Psi (1-3.5Bar)

• Cleaning Radius: 3.2-10ft

• Finished: mirroir or stain
