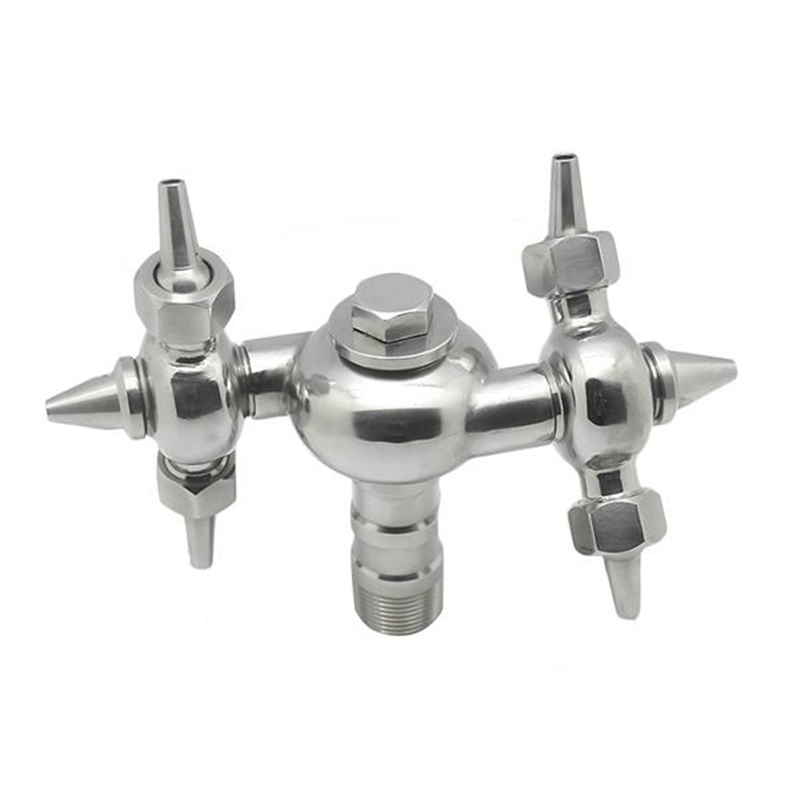

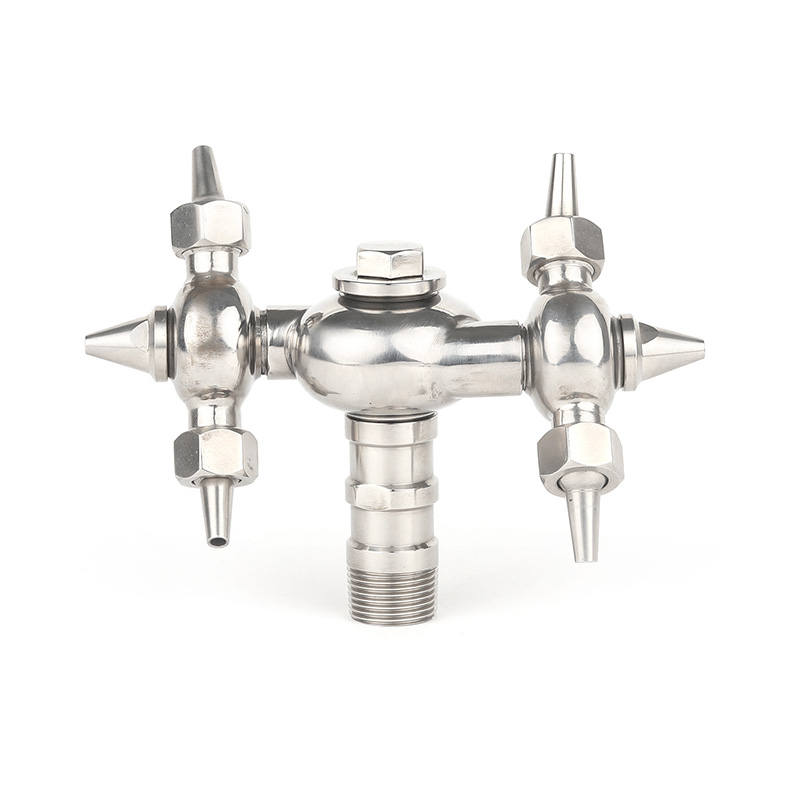

TCC Rotary Cleaner

TCC Series Sanitary Rotary Cleaner was designed for high-performance CIP application required circumstances.

立即查询 PDF 数据表

Application

TCC Series Sanitary Rotary Cleaner was designed for high-performance CIP application required circumstances.

Materials

  • Body Materials: AISI-304 or AISI-316L

Standard Design

  • Available in size from 1"-2", DN15-DN65

  • Standards: DIN, SMS, ISO / IDF

  • End connections: thread or clip on

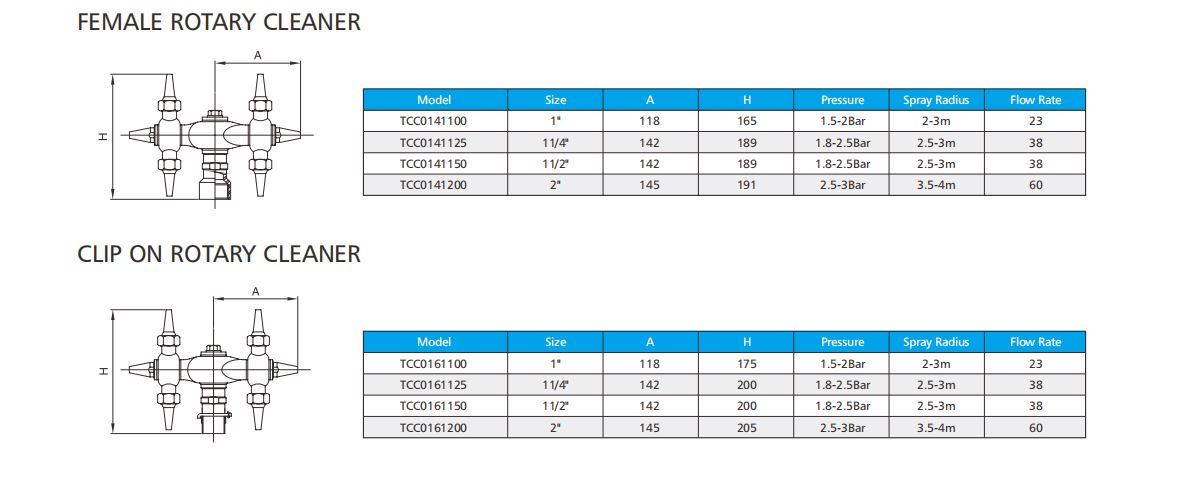

Technical Specification

  • Max Temperature: 284℉ (140℃)

  • Working Pressure: 14.5-50Psi (1-3.5Bar)

  • Cleaning Radius: 3.2-10ft

  • Finished: mirroir or stain
