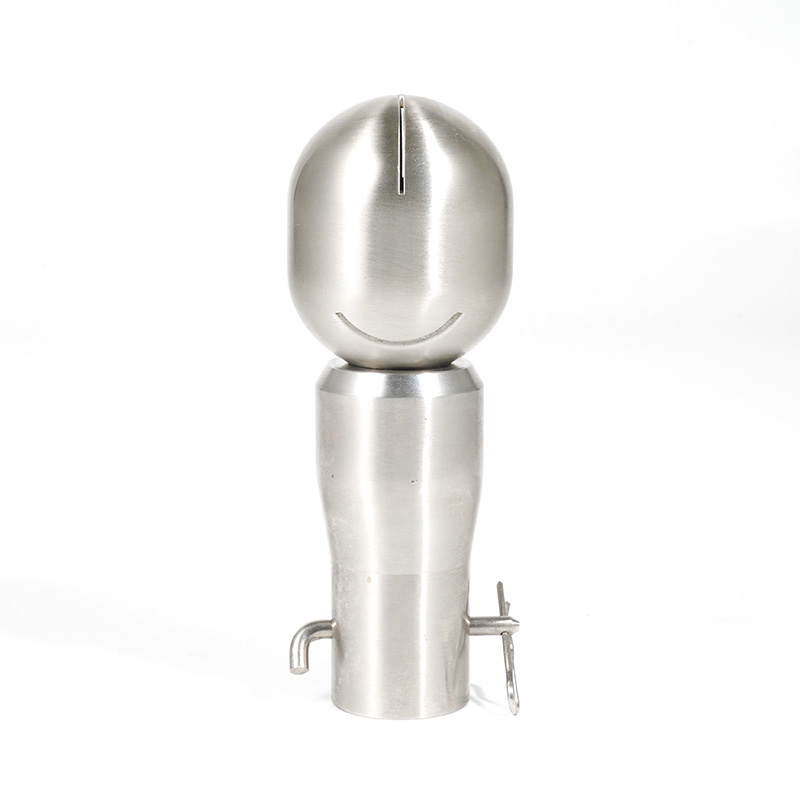

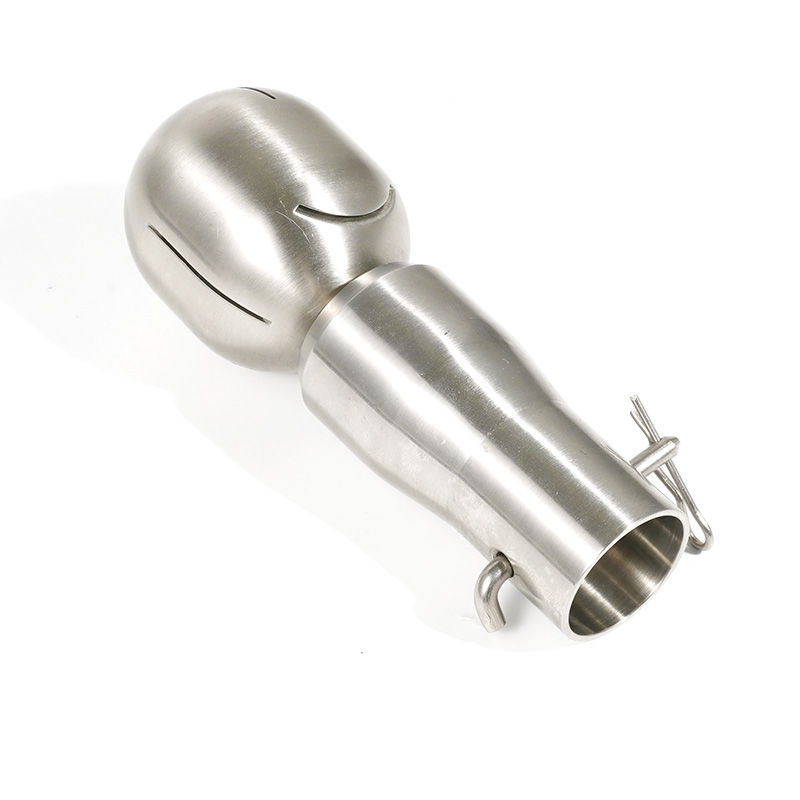

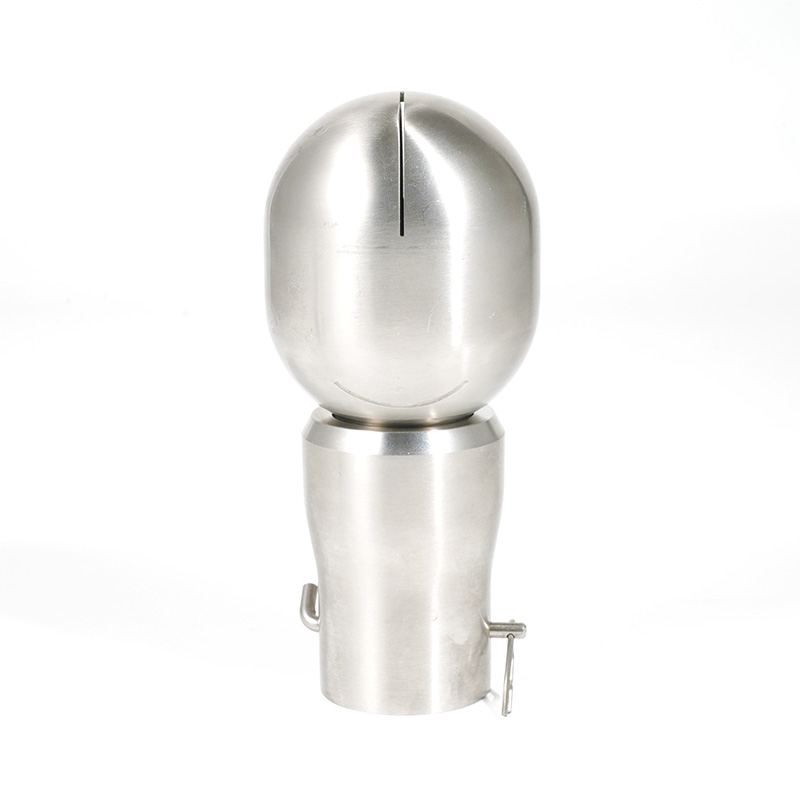

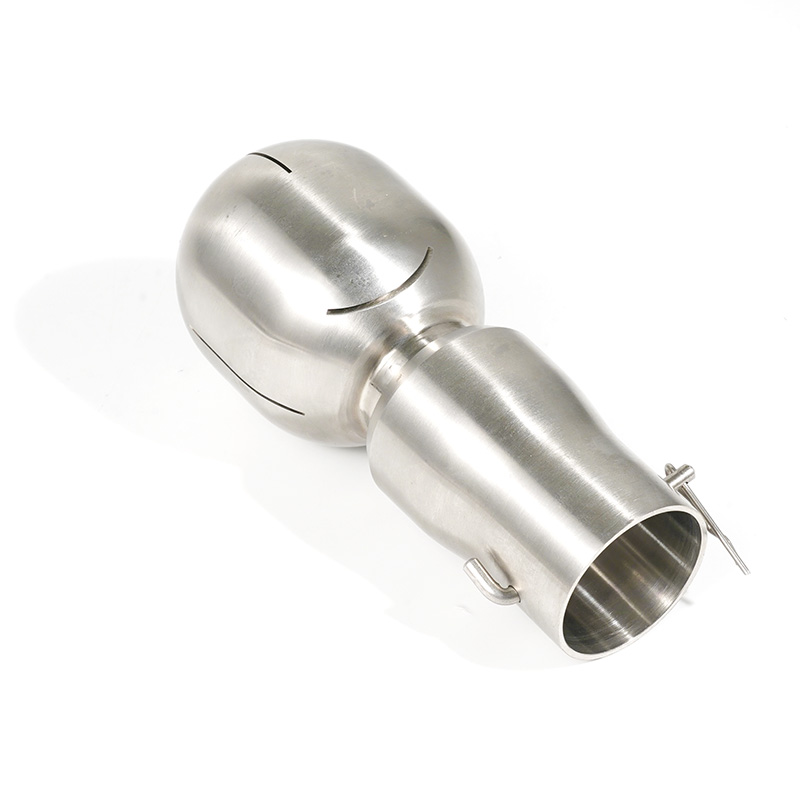

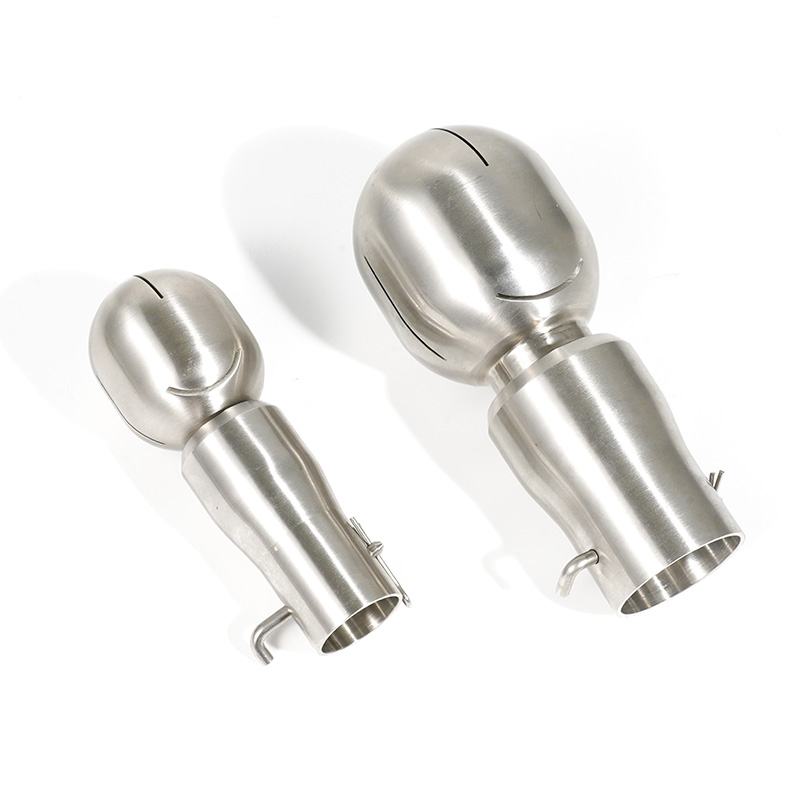

TCA Elliptical Rotary Cleaning Ball

Application

• TCA Series Sanitary Rotary Cleaning Ball applies dual ball bearing design, is better for CIP application coverage and time saving.

Materials

• Body Materials: AISI-304 or AISI-316L

Standard Design

• Available in size from 1/2"-2.5", DN15-DN65

• Standard total length: 250mm

• Standards: DIN, SMS, ISO / IDF

• End connections: tri clamp

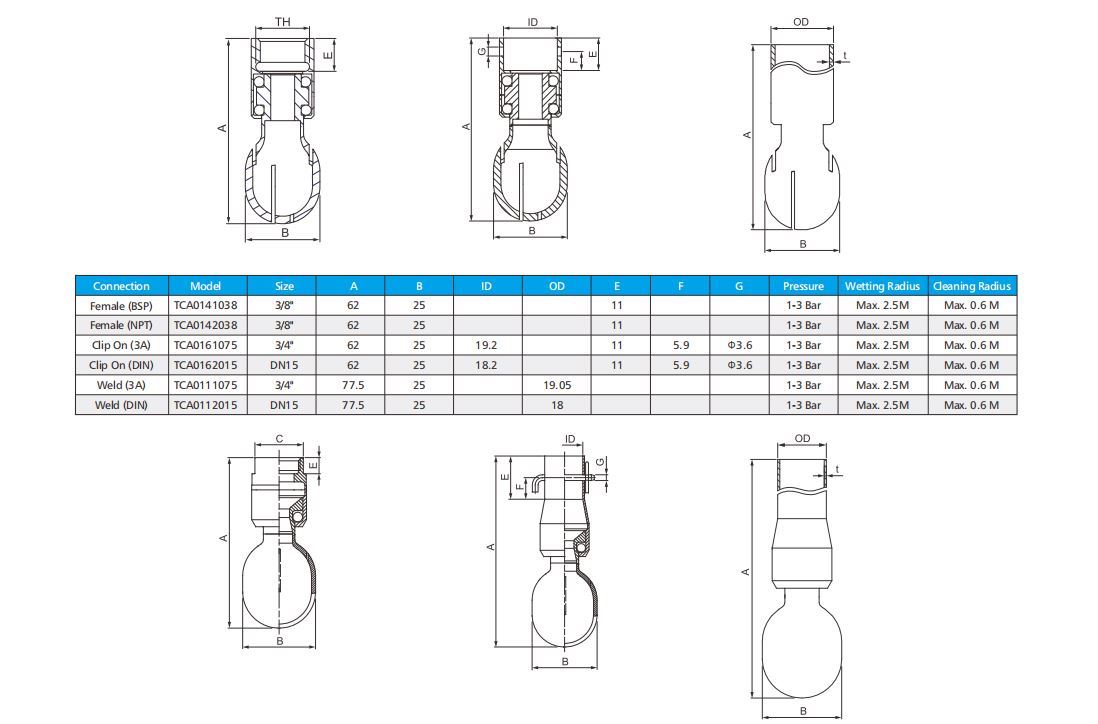

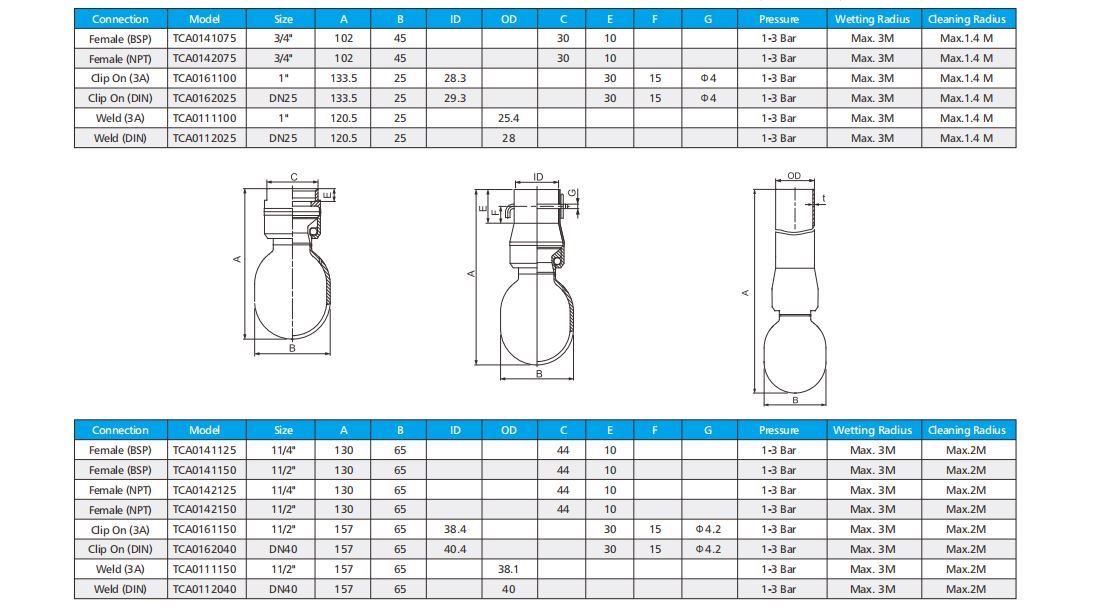

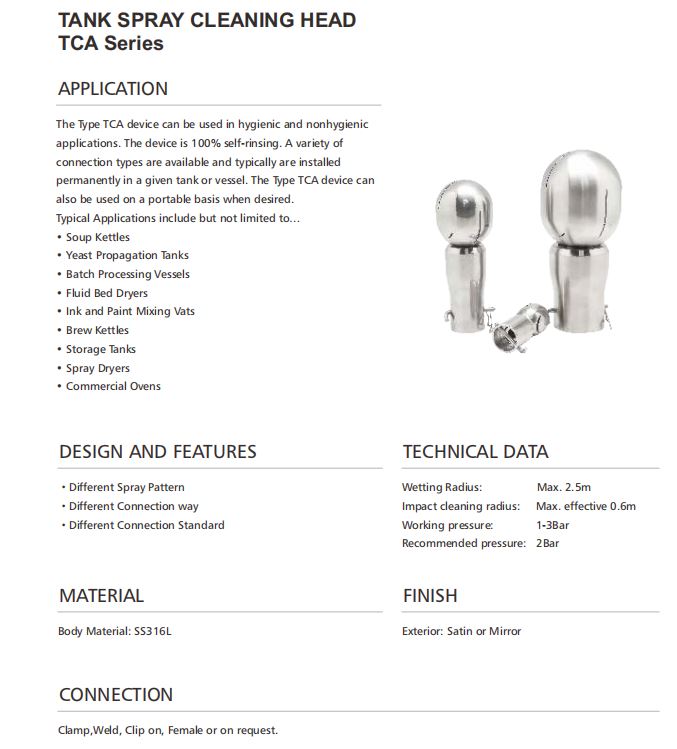

Technical Specification

• Max Temperature: 284℉ (140℃)

• Working Pressure: 14.5-50Psi (1-3.5Bar)

• Cleaning Radius: 3.2-10ft

• Finished: mirroir or stain
