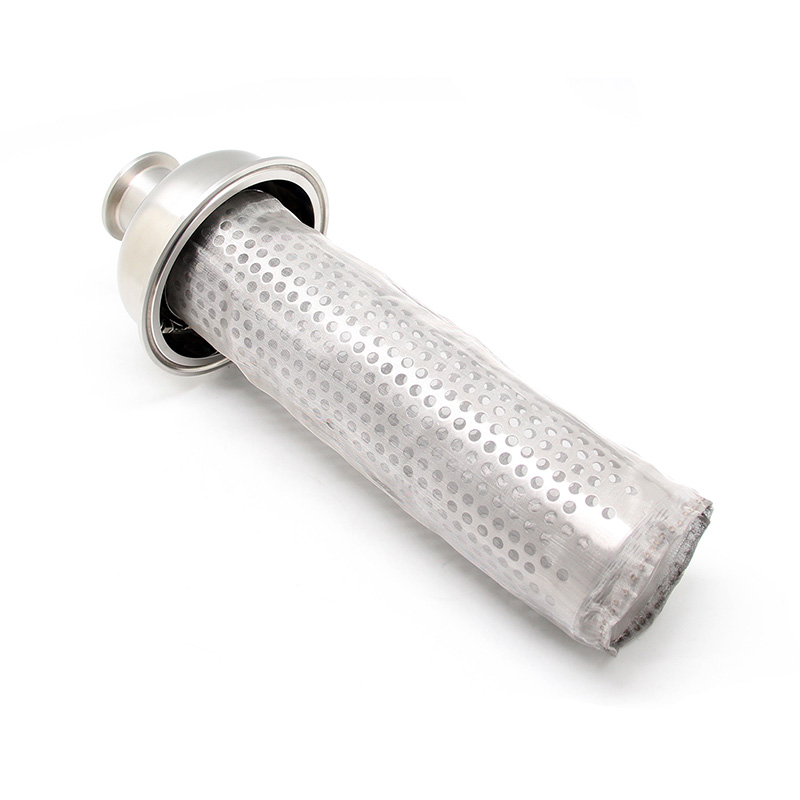

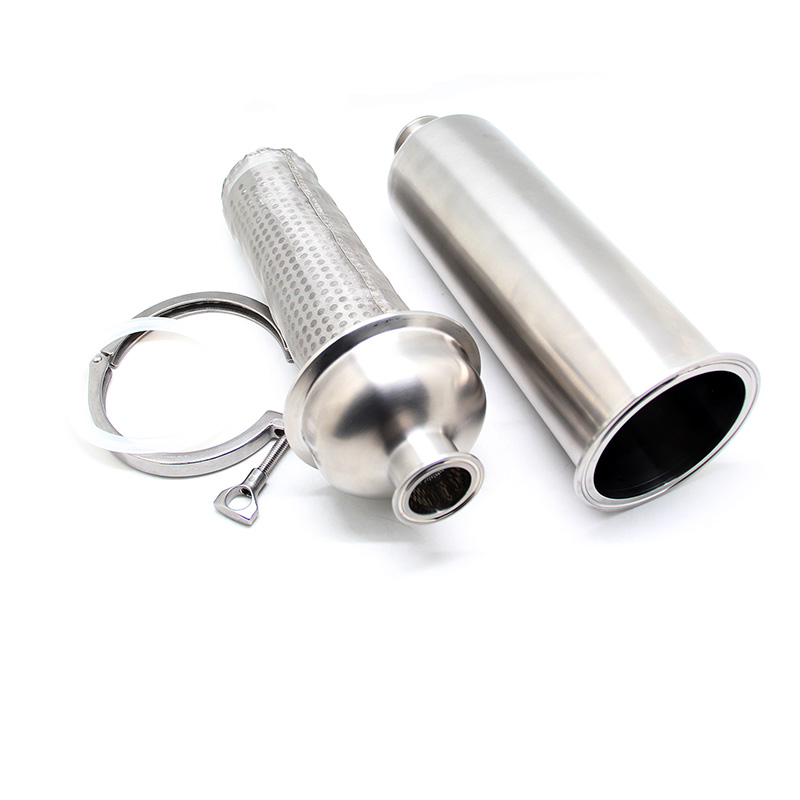

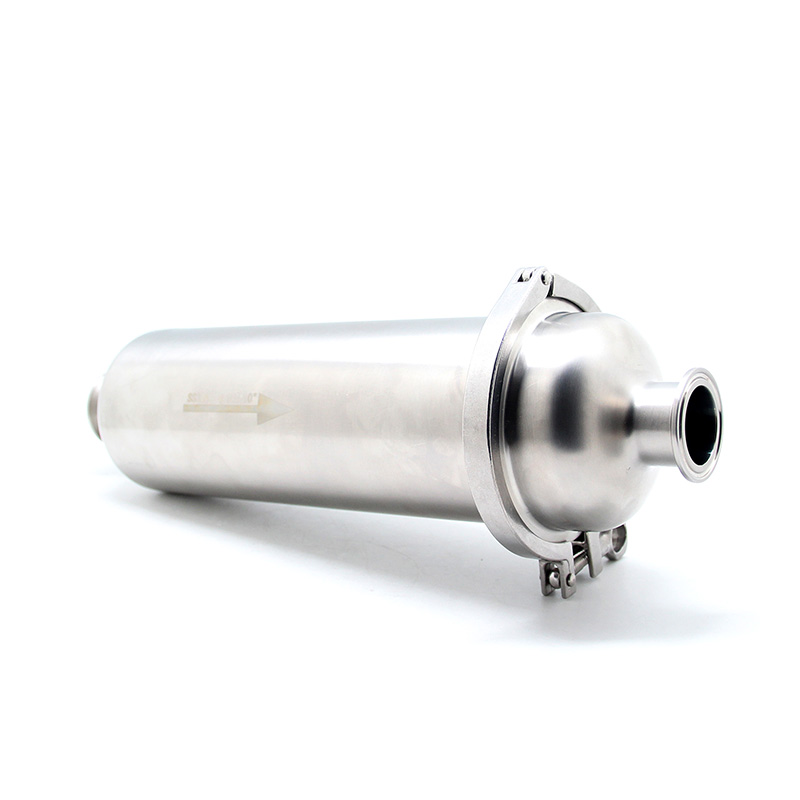

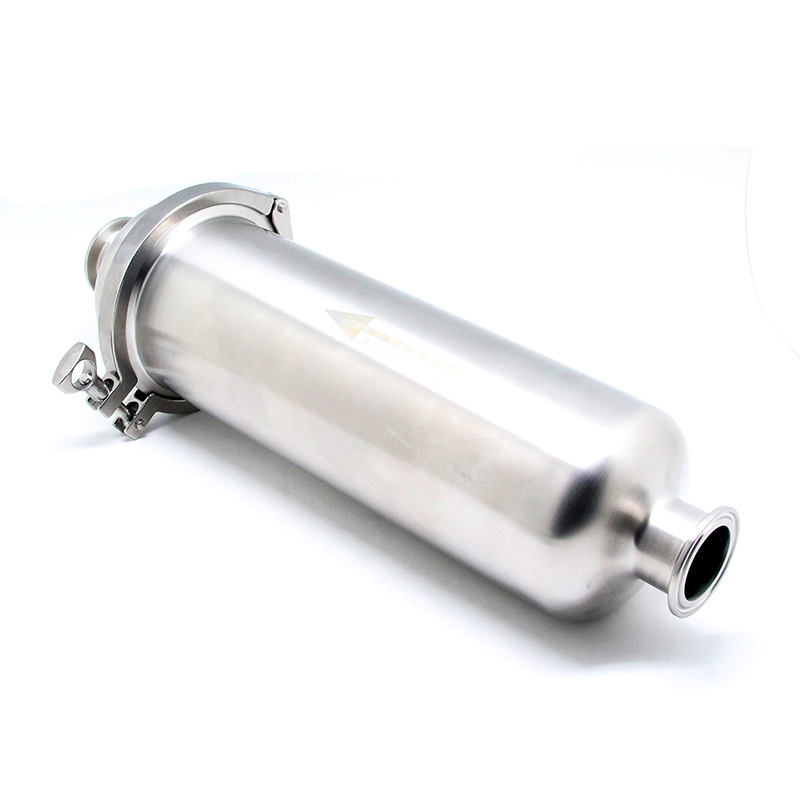

TFS Straight Filter

Application

TFS Series straight filter is mainly used for filtering liquid with solid particles, protecting the pump, instruments and other devices to work properly.

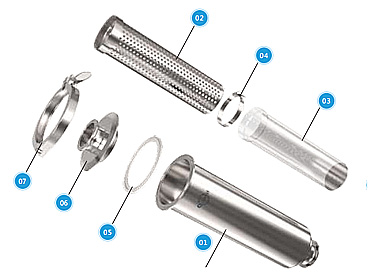

Materials

• Body Materials: AISI-304 or AISI-316L

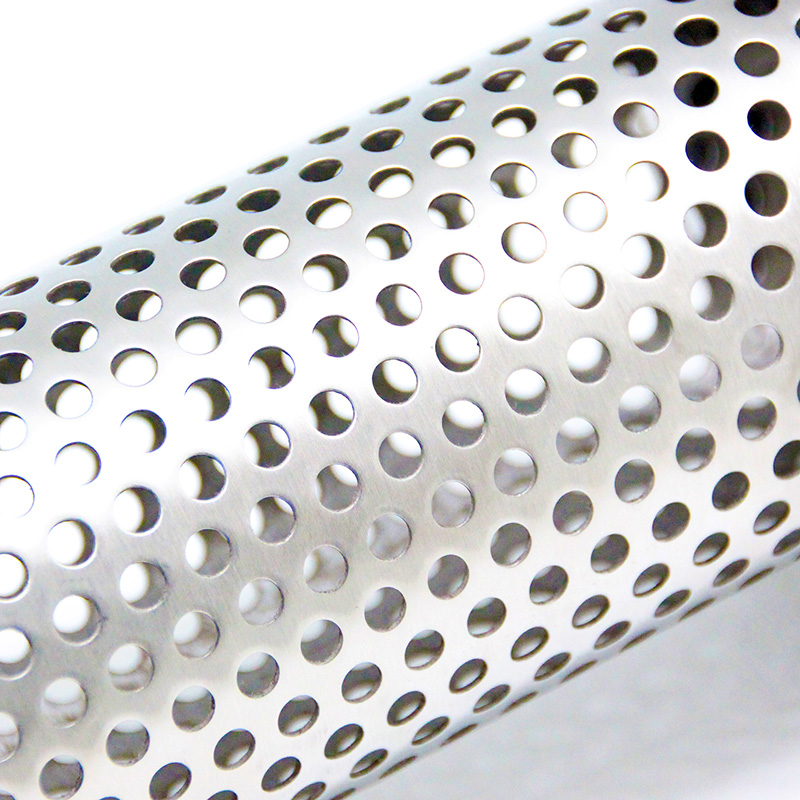

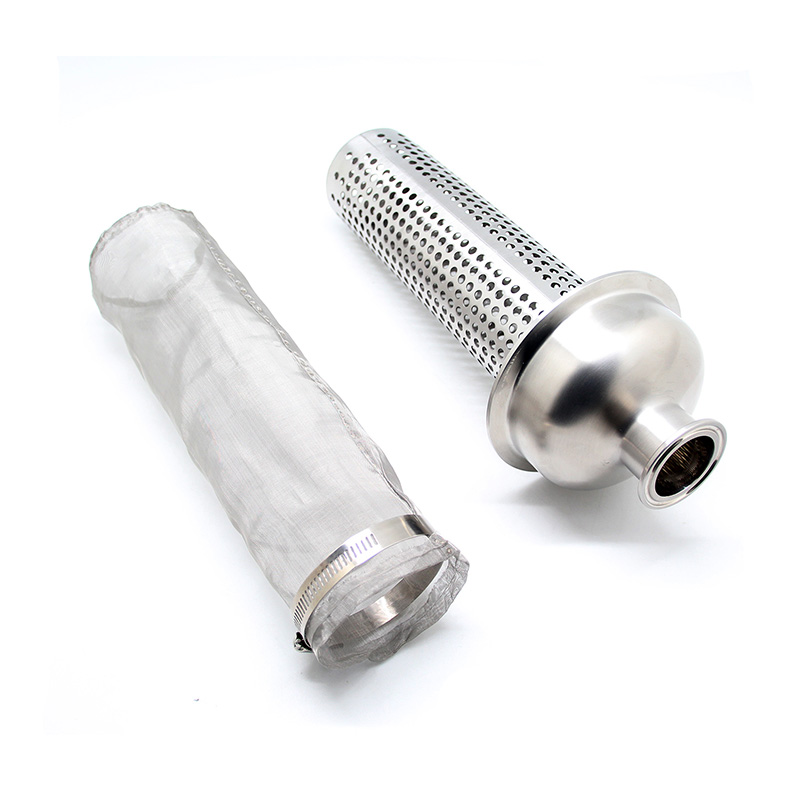

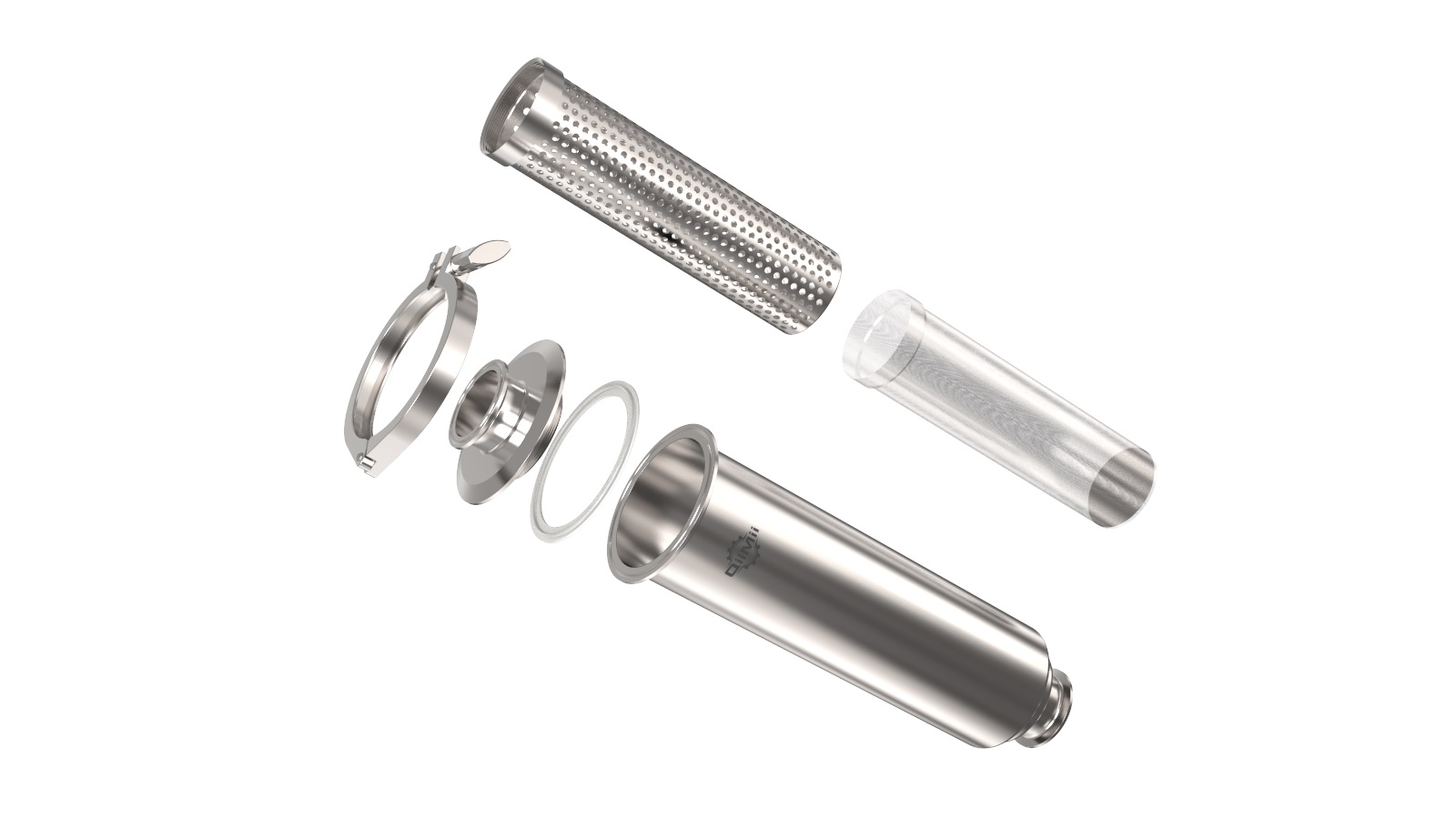

• Filter Screen: Metal Mesh, Perforated Plate

• Gasket Material: EPDM, NBR

Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

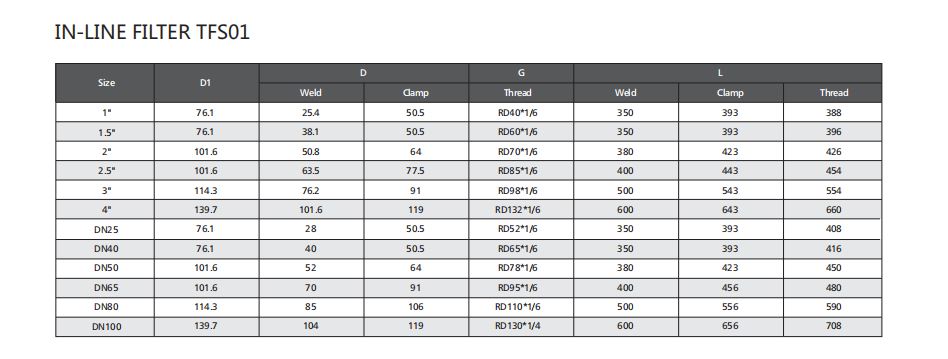

• Available in size from 1"-4", DN25-DN100 or others upon requirement

• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

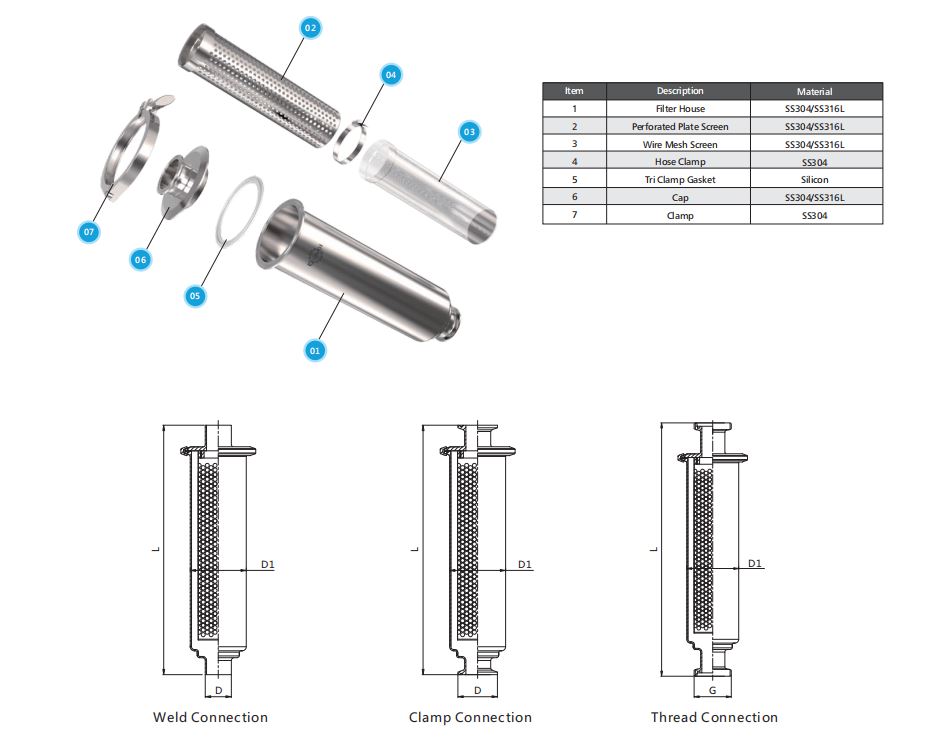

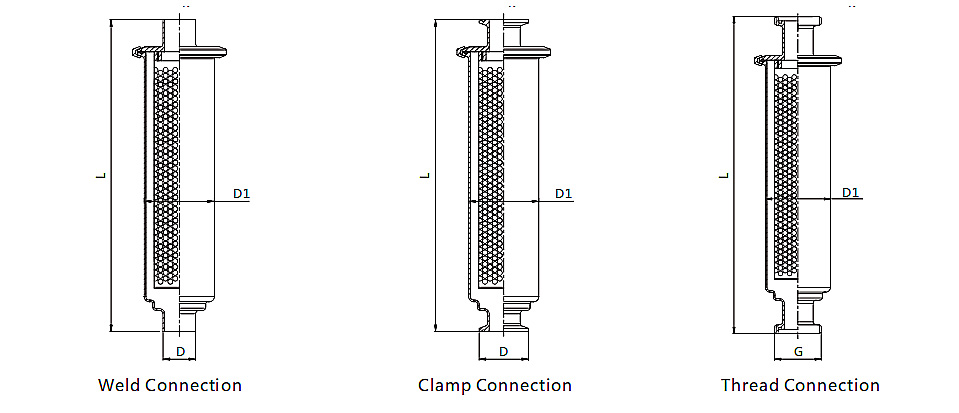

• End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

• Temperature range: -4 ~ 275℉ (-20 ~ 135℃), EPDM

• Working Pressure: 14.5-145Psi (1-10Bar)
