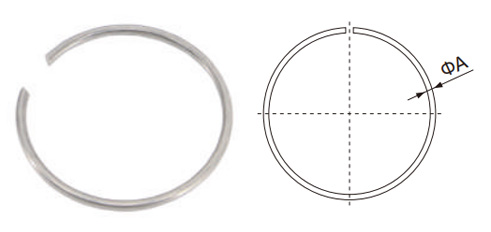

Split Retainer Ring

Material

Material:SS304

Description

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ls0-f see diagram C) or 2. Claw clamps (ls0-k, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp (see diagram B).

	Model for 304	Size(ISO/NW)	A/mm	N.W./g
	FLG861S634	63	3
	FLG861S804	80	3
	FLG861S1004	100	3
	FLG861S1604	160	4.5
	FLG861S2004	200	4.5
	FLG861S2504	250	4.5
	FLG861S3204	320	4.5
	FLG861S4004	400	8
	FLG861S5004	500	8
