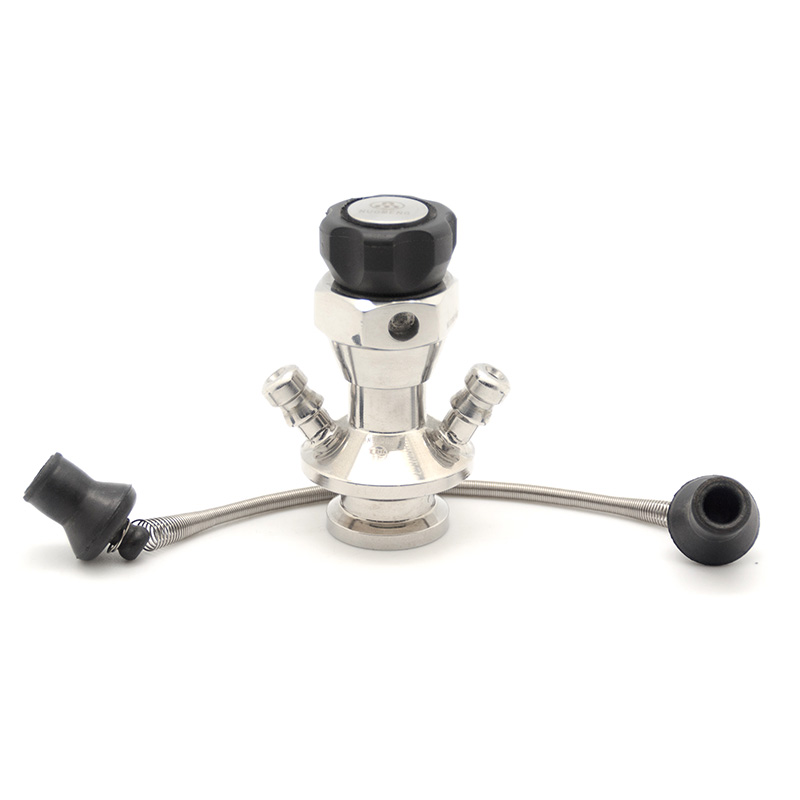

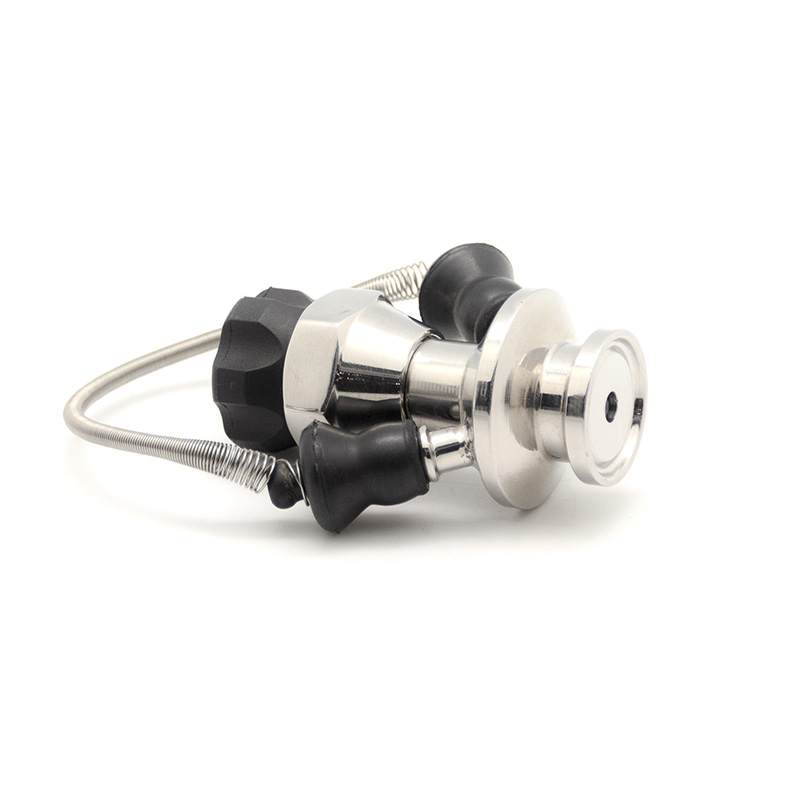

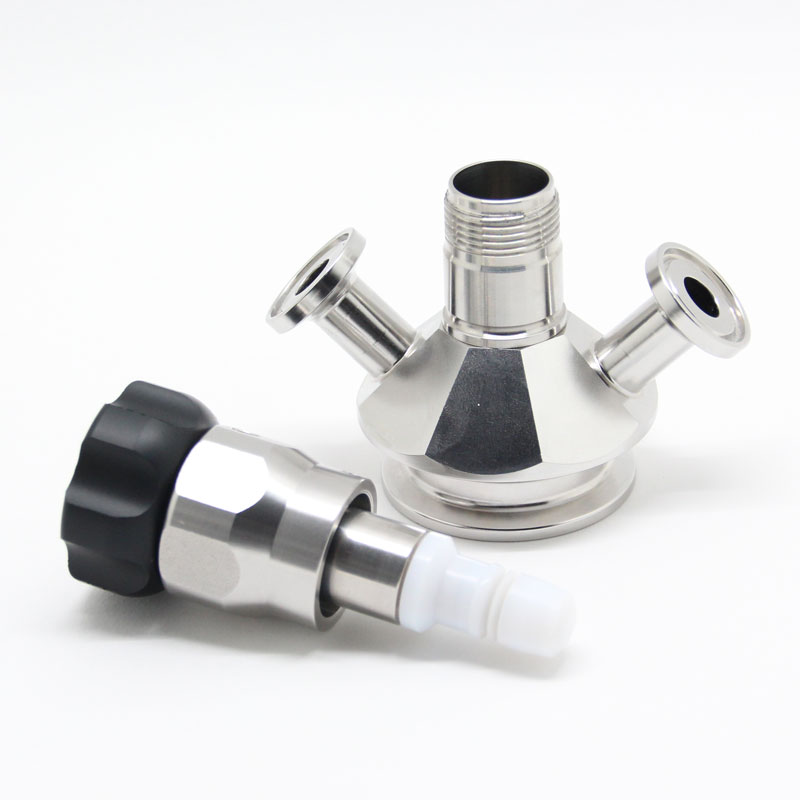

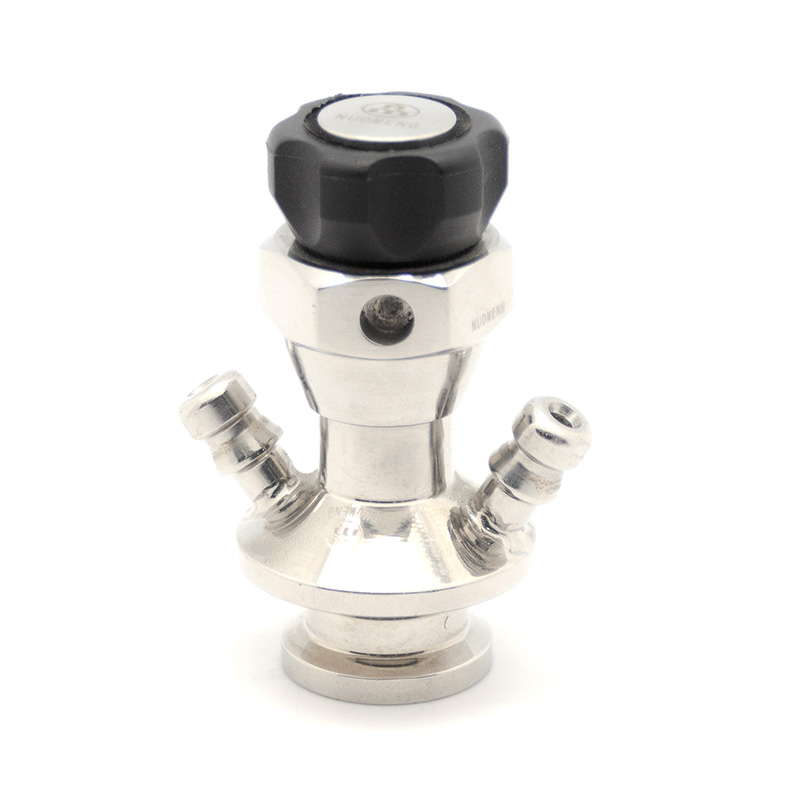

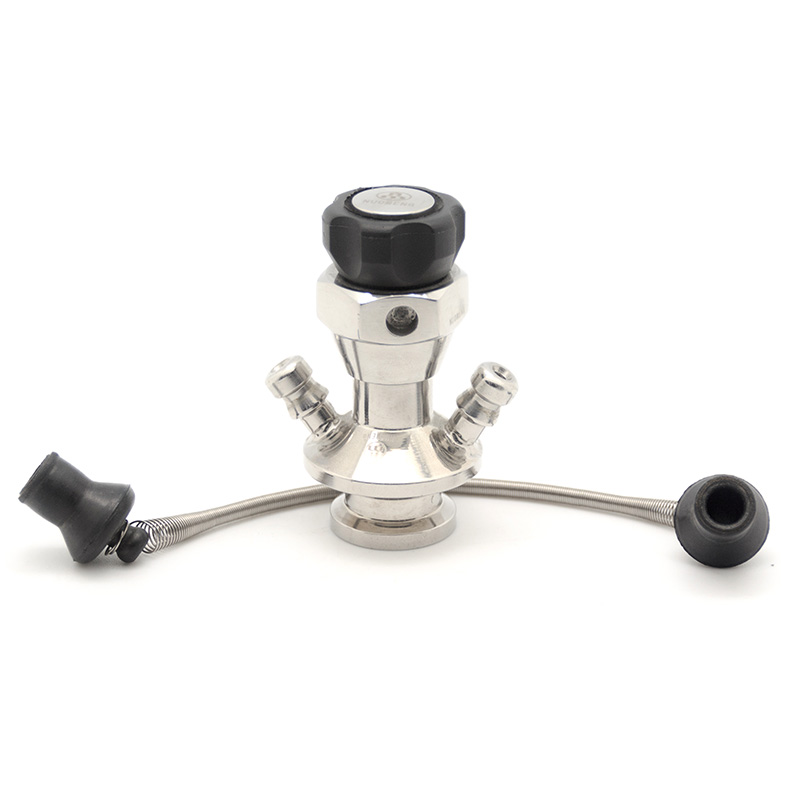

VSA series Aseptic sampling vavles are measured to designed for sampling medium viscosity products with about 0-1,000cP in viscosity and with particles up to 3mm in diameter.
Such as Unprocessed Milk,Medical solutions, Filtered and unfiltered beer, Perfume, Creams and lotions, and much more.
Body: AISI-304 or AISI-316L
Head: AISI-304 or AISI-316L
Seal: EPDM or PTFE
Valve seat and gasket comply with FDA 21CFR177.2600
Available Size: 1/2" or 1"
End connection: triclamp or weld
Max. pressure: 10bar (145psi)
Temperature range: EPDM 32 ~ 266°F (0 ~ 130°C)
Temperature range: PTFE 32 ~ 302°F (0 ~ 150°C)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
VSN series Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be assemble...
查询
VSY Yogurt sampling valves are used to treat high viscosity materials, such as yoghourt, syrup, ice cream...
查询
VSC series Aseptic Sampling Valve mainly applied to extract sample from tank or pipeline. It also can be ...
查询
VSB series Beer Sampling Valve was designed for brewing industry with its easy usalbility, also wided use...
