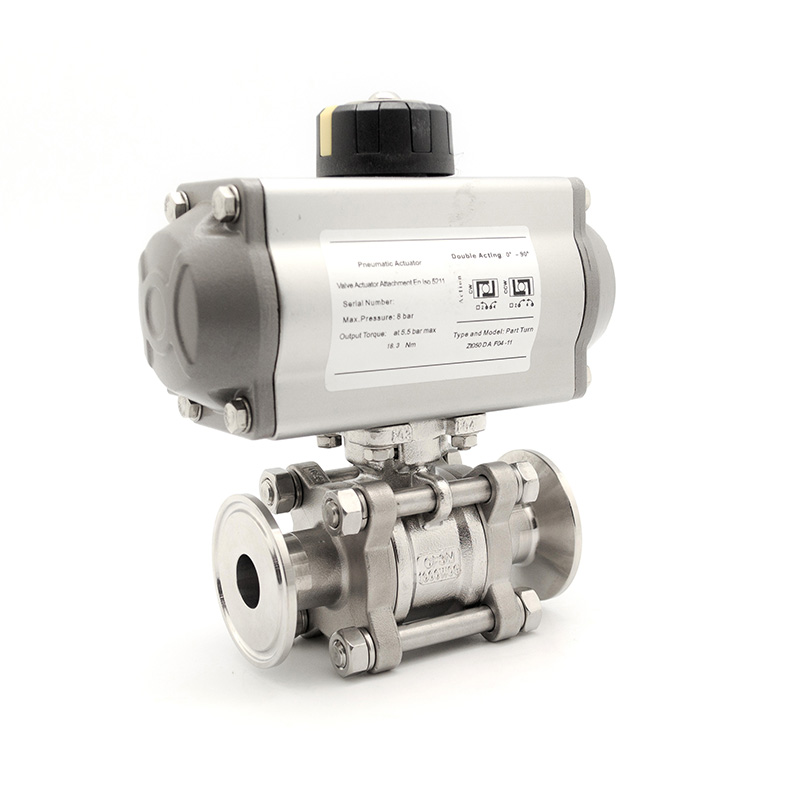

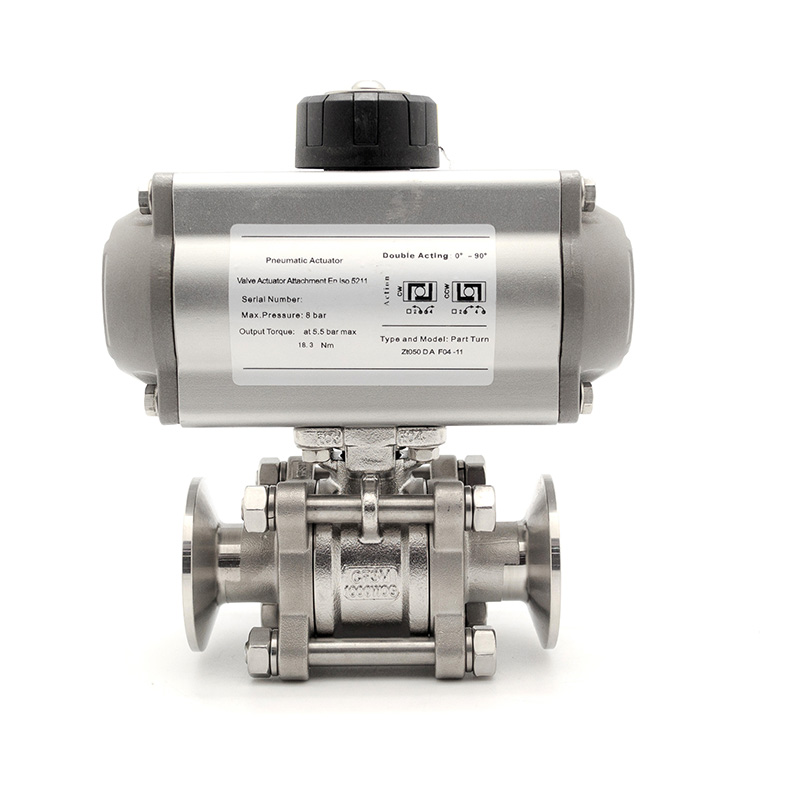

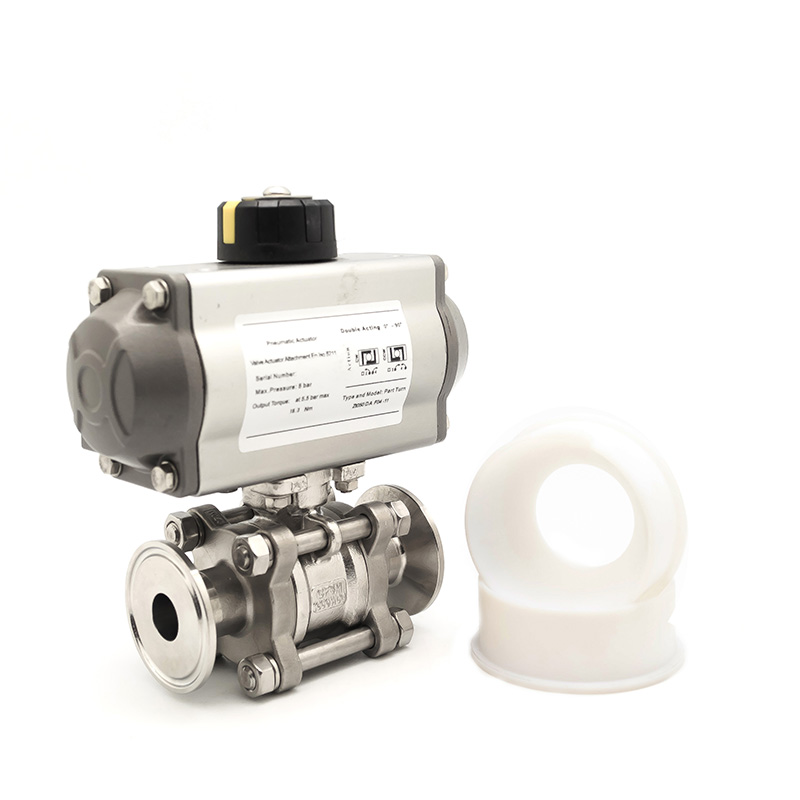

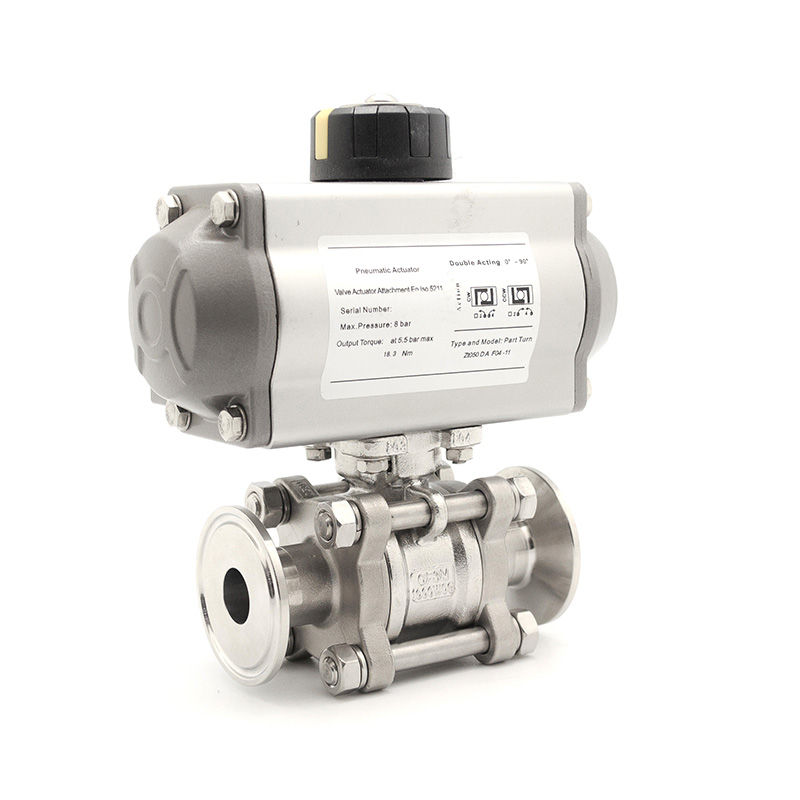

VFP Three Pieces Non-Retention Pneumatic Ball Valve

Application

VFP series is well used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow.

The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids.

Options

Two- way ball valve; Three-way ball valve;

T type, L type ball core.

With/without purge ports for SIP / CIP.

Materials

Materials: AISI-304

Size: 1/2''

FDA seal

Valve seat: PTFE

Gasket: EPDM, Silicone

Design Features

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

Technical Specification

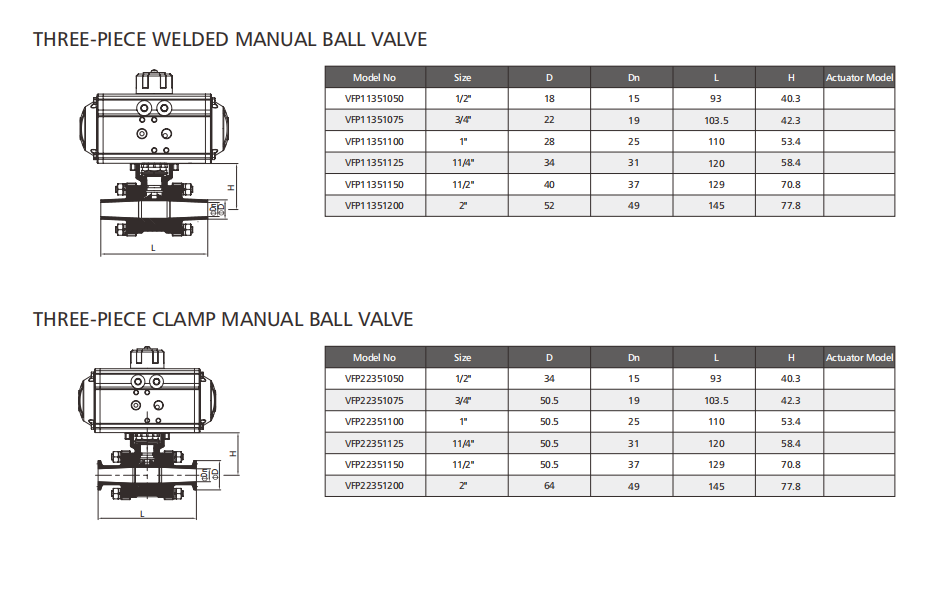

Sizes available from DN15-1/2" to DN100-4"

Max. working pressure (PTFE): 10bar (147psi)

Temperature range (PTFE): -20 ~ 350℃

End connections: sanitary clamp, butt-welded, threaded, flanged, I-line or others on request.

Surface treatment: Ra 16 ~ 32μin (0.4 ~ 0.8μm)

Supply pressure for air actuator: 70 ~ 115psi
