应用

VDU系列是一款U型设计的卫生级隔膜阀，专为食品、饮料、乳制品、酿造、制药等行业设计。它在流量控制以及开关操作方面表现出色。

·在高纯度系统的取样/进样点非常有用

·无空腔且可自动排水

·完全可高压灭菌

·通过隔膜将流体与操作机构密封隔离。

·完全可追溯性，符合EN10204 3.1标准

·可提供多种内表面光洁度，每种光洁度均小于0.40 Ra。

·可缩减端口

材料

主体：AISI-316L
膜材：EPDM+PTFE 或 EPDM

密封材料符合FDA177.2600标准。采用专有技术，隔膜由EPDM和PTFE组合而成，并用不锈钢螺栓固定。与介质接触的密封部分采用PTFE材料，具有良好的耐寒性（-13℉/-25℃）、优异的耐热性（482℉/+250℃）、耐大多数化学品腐蚀以及优异的耐介质磨损性能。

标准设计

标准：DIN、SMS、ISO/IDF、BS/RJT、ASME/BPE。
端部连接方式：焊接、卫生级卡箍或其他按需提供的方式
阀体类型：T 型三通、U 型三通、迷你型、罐底型等

技术规格

最大工作压力：147psi（10bar）
温度范围：14 ~ 248℉（-10 ~ 120℃），EPDM
内表面抛光：Ra 16-32微米（0.4~0.8µm）
可用于CIP/SIP。

膜		技术数据
材料	PTFE+EPDM	连接尺寸	3/4"-"或DN15-DN50
主	两件式模压开口	MOC-润湿（接触）	316L不锈钢
介质温度（EPDM）	-10℃至+80℃	MOC润湿（非接触式）	聚酰胺或CF8（SS304）
介质温度（EPDM/PTFE）	-10℃至+100℃	表面处理	机械抛光或电解抛光
灭菌温度（EPDM）	最高温度可达+120℃	末端连接	三联夹
灭菌温度（EPDM/PTFE）	最高耐受温度+150℃		对接焊
			母螺纹
		手术	不锈钢手轮
			塑料手轮
			塑料气动执行器
			SS气动执行器
		安装	根据需要，最好将手柄置于直立位置

焊接 U 型隔膜阀 VDU

型号	尺寸	D1	B	E	HxY	M	拉
VDU11W1661050NN	1/2英寸	12.7	112	66	22x22	M4	20
VDU11W1661075NN	3/4英寸	19.05	117	110	37x32	M5	28.5
VDU11W1661100NN	1英寸	25.4	161	132	57x47	M8	38
VDU11W1661125NN	1 1/4英寸	31.8	187	172	70x64	M10	38
VDU11W1661150NN	1 1/2英寸	38.1	208	178	70x64	M10	48.5
VDU11W1661200NN	2英寸	50.8	247	230	85x75	M12	60.6
VDU11W1661250NN	2 1/2英寸	63.5	320	265	105x91	M14	83.5

U型卡箍隔膜阀VDU

型号	尺寸	D1	B	E	HxY	M	D3	拉
VDU22W1661050NN	1/2英寸	12.7	112	66	22x22	M4	25.2	20
VDU22W1661075NN	3/4英寸	19.05	117	110	37x32	M5	25.2	28.5
VDU22W1661100NN	1英寸	25.4	161	132	57x47	M8	50.5	38
VDU22W1661125NN	1 1/4英寸	31.8	187	172	70x64	M10	50.5	38
VDU22W1661150NN	2 1/2英寸	38.1	208	178	70x64	M10	50.5	48.5
VDU22W1661200NN	2英寸	50.8	247	230	85x75	M12	64	60.6
VDU22W1661250NN	2 1/2英寸	63.5	320	265	105x91	M14	77.5	83.5

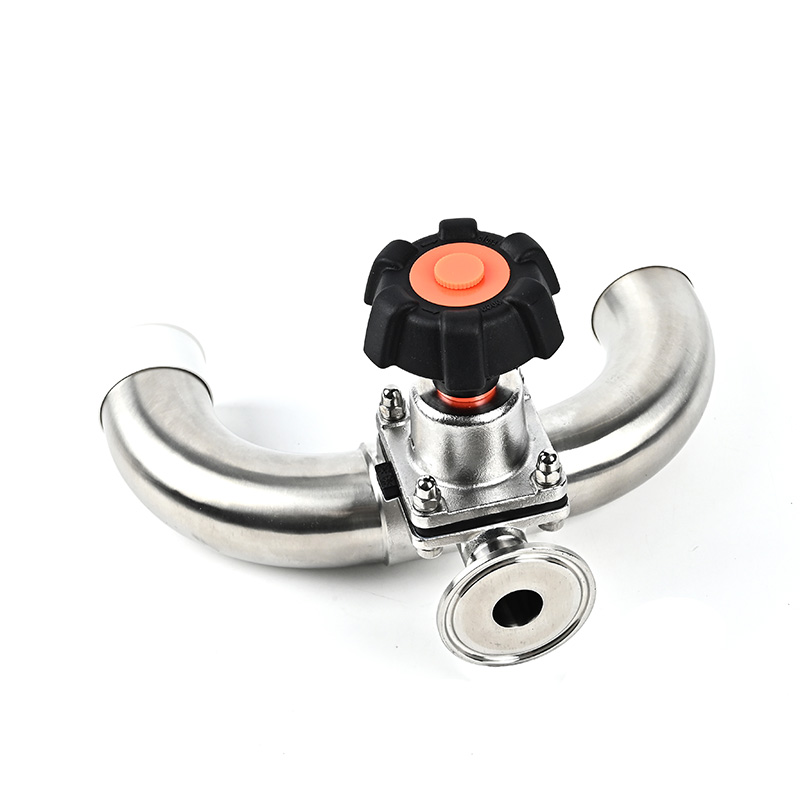

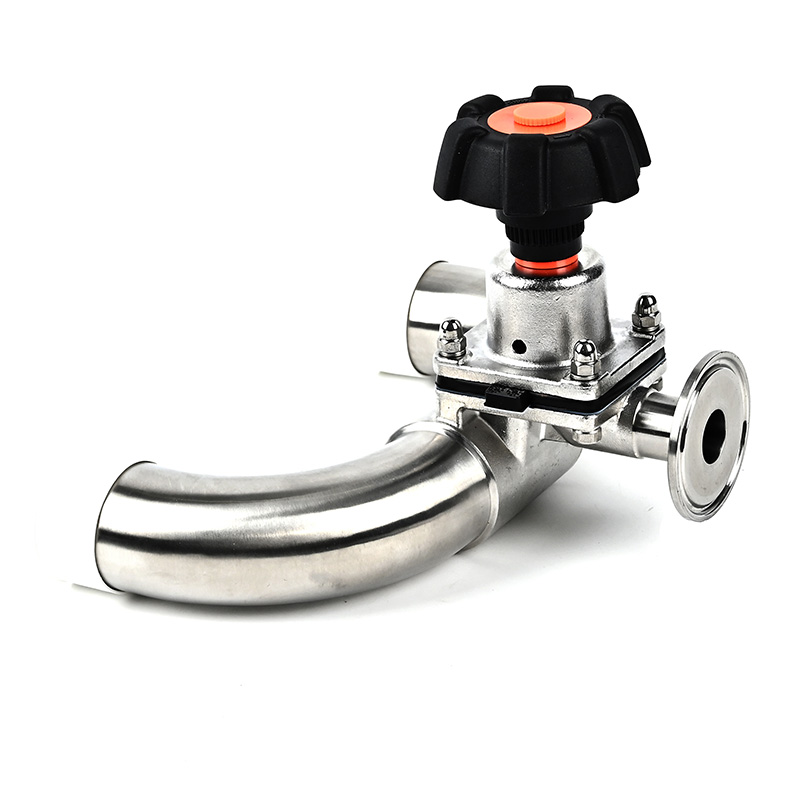

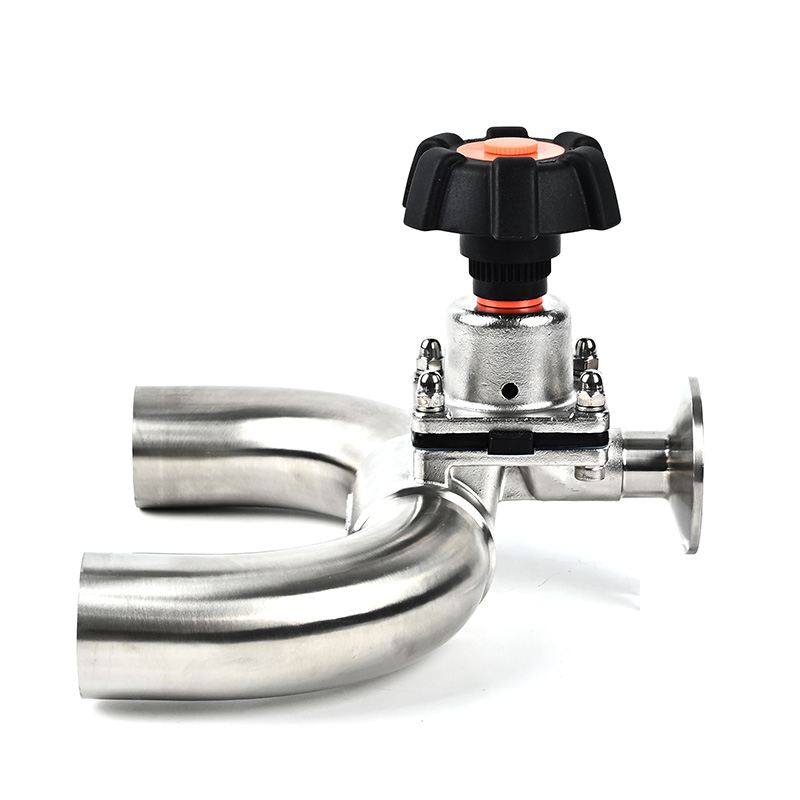

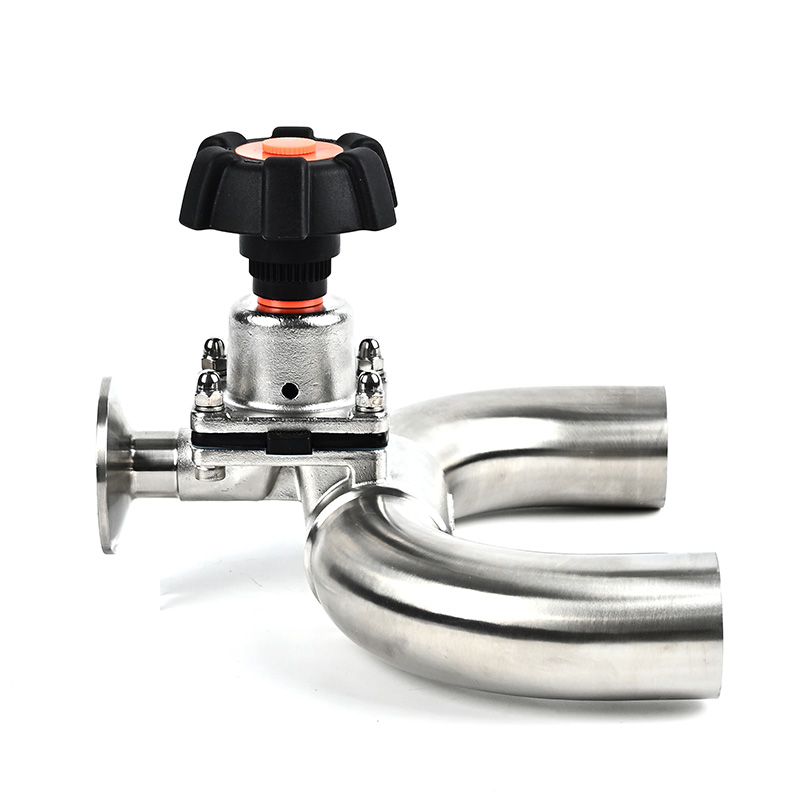

Application

VDU series is a sanitary diaphragm valve with U type design, which is specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

·Very useful at sampling / injection points on high purity systems

·Cavity free and self-draining

·Fully Autoclavable

·Hermetical separation of fluids from the operating mechanism by diaphragm

·Full traceability as per EN10204 3.1

·Various internal surface finish available each less than 0.40 Ra

·Reducing port is available

Materials

Body: AISI-316L
Membrane: EPDM+PTFE or EDPM

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉ (-25℃), excellent heat-resistance 482℉ (+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design

Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.
End connections: butt-welded, sanitary clamp, or others upon request
Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

Technical Specification

Max. working pressure: 147psi (10bar)
Temperature range: 14 ~ 248℉ (-10 ~ 120℃)), EPDM
Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)
Available for CIP/SIP.

Membrane		Technical Data
Material	PTFE+EPDM	Connection Size	3/4"-"or DN15-DN50
Deaign	Two-Piece Molded Open	MOC-Wetted(Contact)	Stainless Steel 316L
Media Temperature (EPDM)	-10℃ to +80℃	MOC-Wetted(Non-contact)	Polyamide or CF8（SS304）
Media Temperature (EPDM/PTFE)	-10℃ to +100℃	Surface Finish	Mechnical or Electro Polish
Sterilisation Temperature (EPDM)	Brieflt up to +120℃	End Connections	Tri Clamp
Sterilisation Temperature (EPDM/PTFE)	Brieflt up to +150℃		Butt-Weld
			Female Thread
		Operation	SS Handwheel
			Plastic Handwheel
			Plastic Pneumatic Actuator
			SS Pneumatic Actuator
		Installation	As required, preferably with handle in upright position

Weld T Type Diaphragm Valve VDT

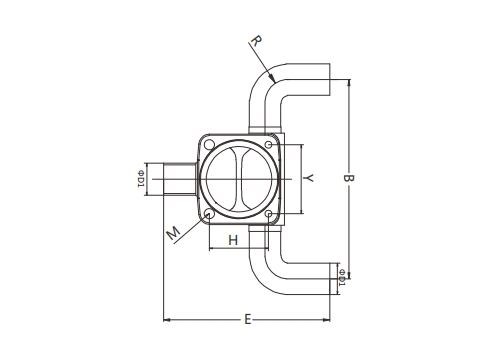

Weld U Type Diaphragm Valve VDU

Model No	Size	D1	B	E	HxY	M	R
VDU11W1661050NN	1/2''	12.7	112	66	22x22	M4	20
VDU11W1661075NN	3/4''	19.05	117	110	37x32	M5	28.5
VDU11W1661100NN	1''	25.4	161	132	57x47	M8	38
VDU11W1661125NN	1 1/4''	31.8	187	172	70x64	M10	38
VDU11W1661150NN	1 1/2''	38.1	208	178	70x64	M10	48.5
VDU11W1661200NN	2''	50.8	247	230	85x75	M12	60.6
VDU11W1661250NN	2 1/2''	63.5	320	265	105x91	M14	83.5

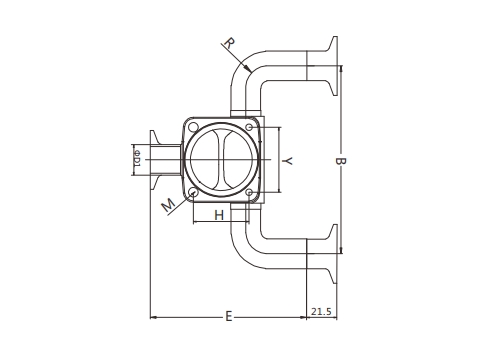

Clamp U Type Diaphragm Valve VDU

Model No	Size	D1	B	E	HxY	M	D3	R
VDU22W1661050NN	1/2''	12.7	112	66	22x22	M4	25.2	20
VDU22W1661075NN	3/4''	19.05	117	110	37x32	M5	25.2	28.5
VDU22W1661100NN	1''	25.4	161	132	57x47	M8	50.5	38
VDU22W1661125NN	1 1/4''	31.8	187	172	70x64	M10	50.5	38
VDU22W1661150NN	2 1/2''	38.1	208	178	70x64	M10	50.5	48.5
VDU22W1661200NN	2''	50.8	247	230	85x75	M12	64	60.6
VDU22W1661250NN	2 1/2''	63.5	320	265	105x91	M14	77.5	83.5
