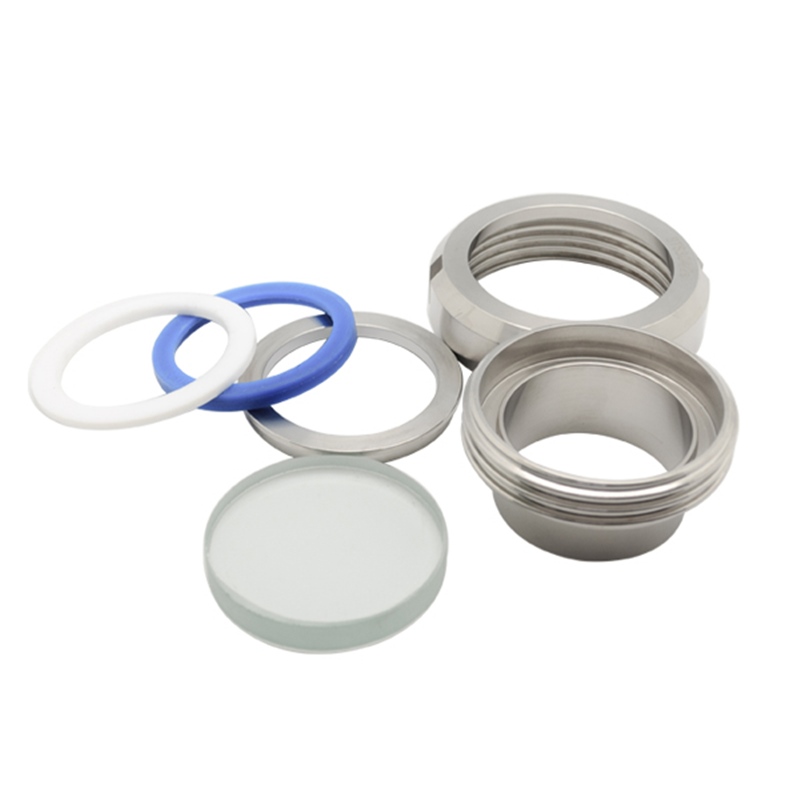

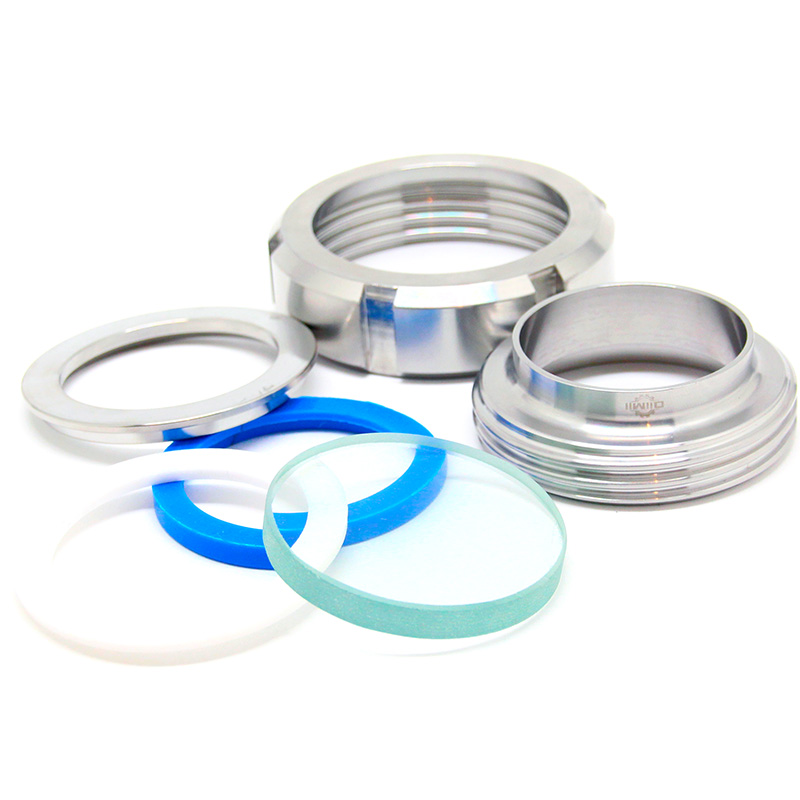

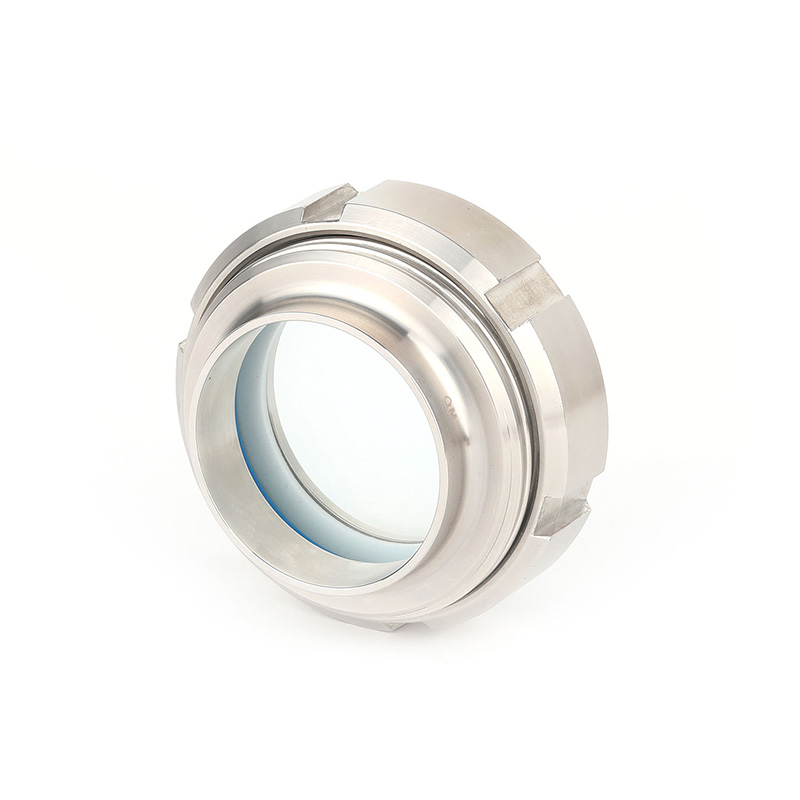

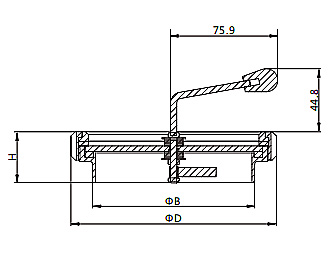

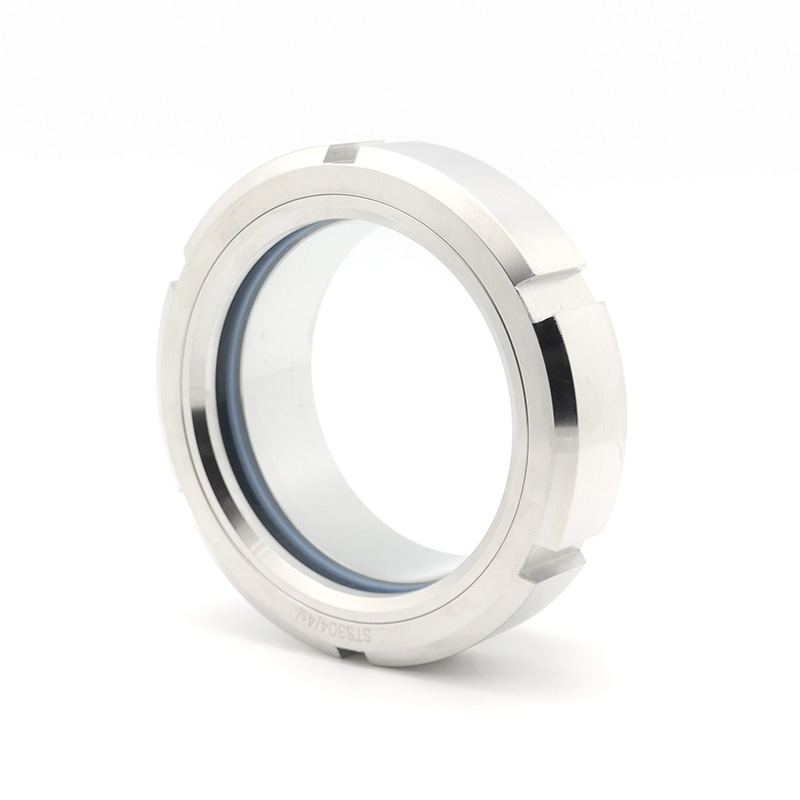

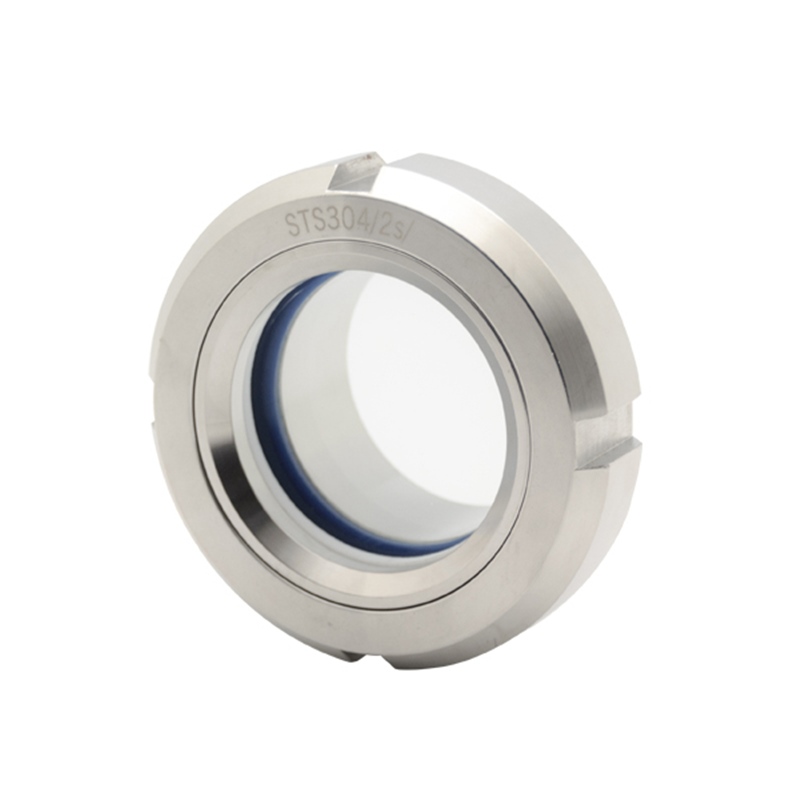

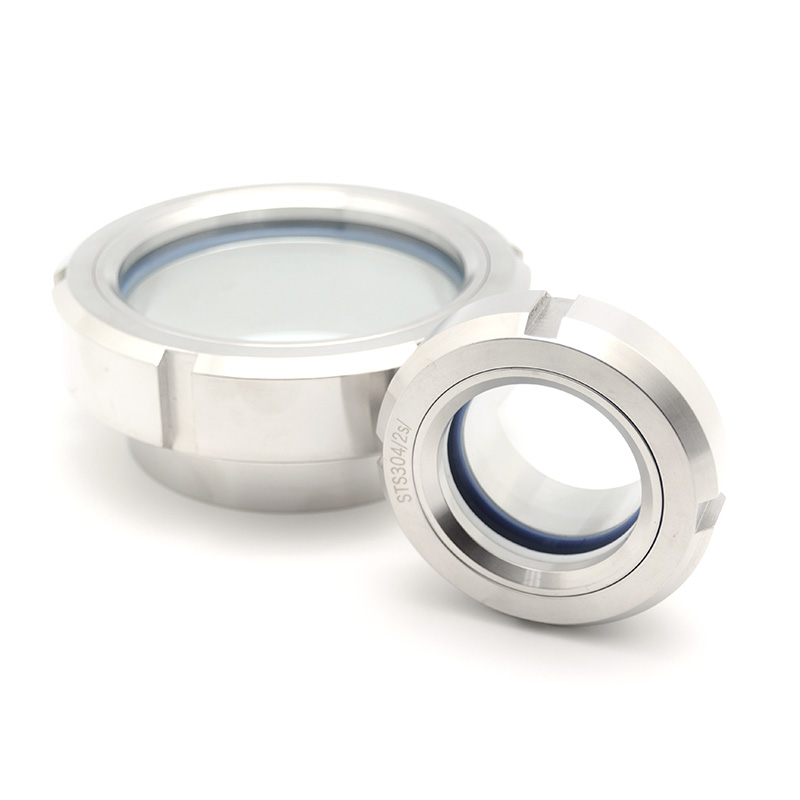

TSU Union Type Sight Glass

Application

TSU Series union type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

Materials

• Body Materials: AISI-304 or AISI-316L

• Tempered glass

• Gasket Material:Silicon, EPDM, FRM

• Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

• Available in size from 1"-4", DN25-DN150 or others upon requirement

• Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

• End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: CNC machining
