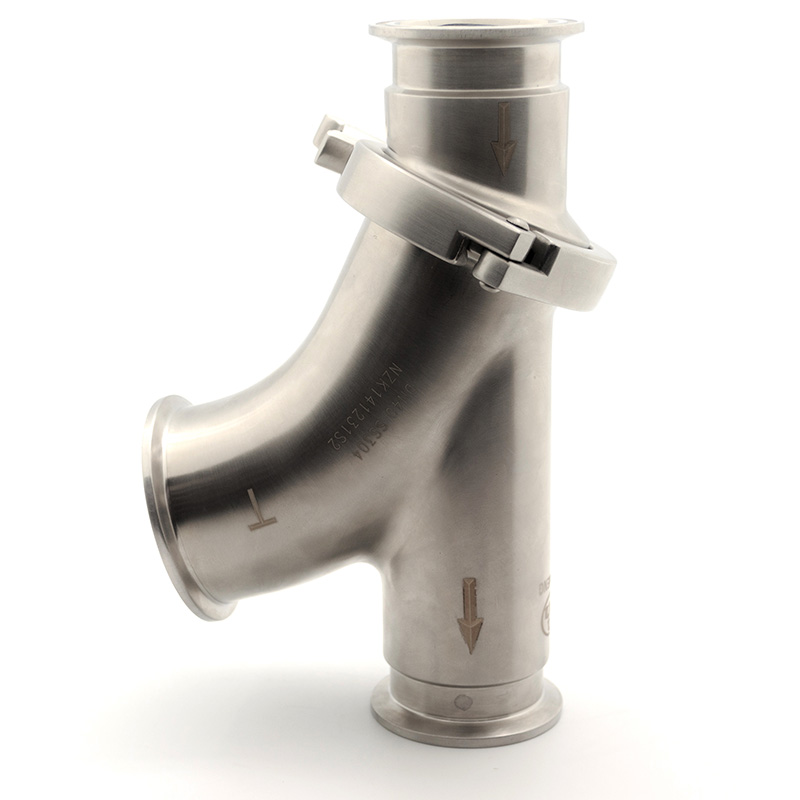

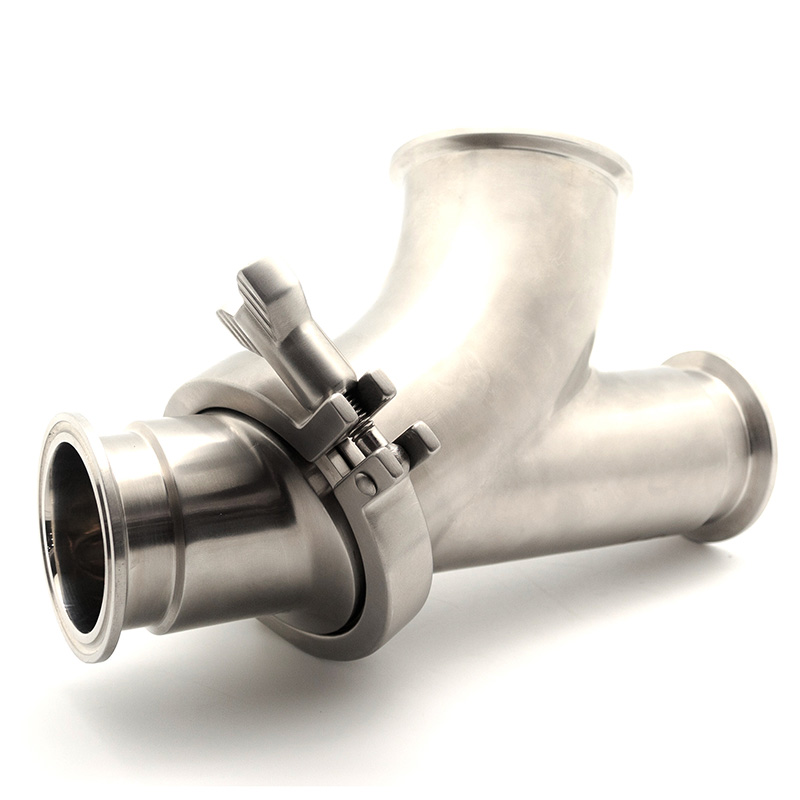

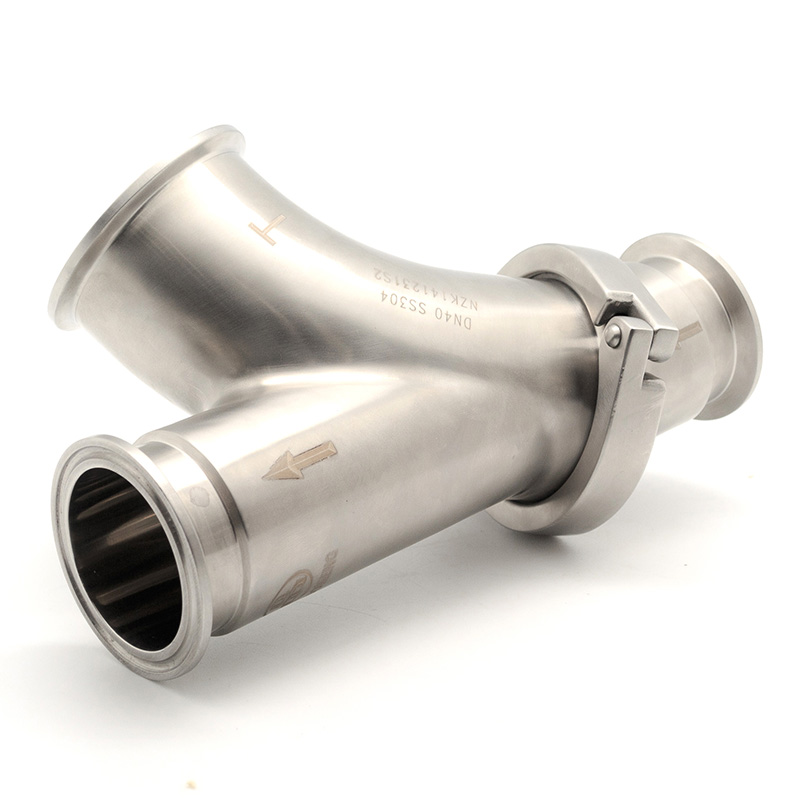

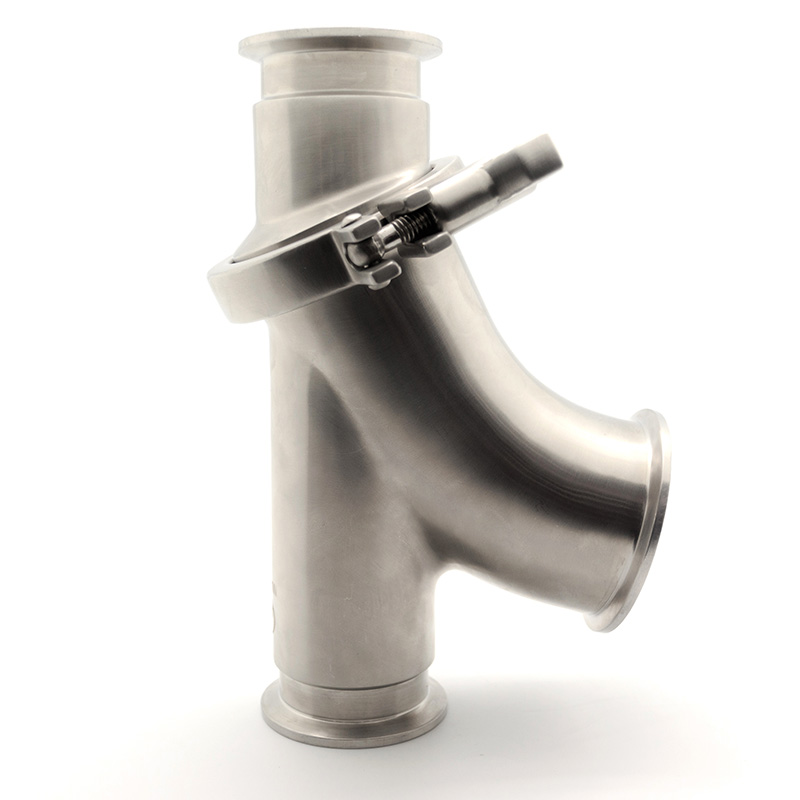

VCY Y-Ball Check Valve

Application

VC Series Prevents the fluid from flowing back and ensures that if flows in only one direction, it can be used to prevent the loss of prime of the pump to avoid pipe-hammering

in the food-processing, beverages, wine-making, oil-making, cosmetics, pharmacemical industries.

Materials

• Materials: AISI-304 or AISI-316L

• Gasket Material:Silicon, EPDM, PTFE, FPM, NBR

          Valve seat and gasket comply with FDA 21CFR177.2600

Standard Design

• Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

Technical Specification

• Size available: 1", 1.1/2", 2", 2.1/2", 3", 3.1/2", 4"

• Max. pressure: 10bar (147psi)

• Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

• Inside polishing: Ra 16 ~ 32µin (0.4 ~0.8µm)

• Connections: Weld, Thread, Clamp, DIN, SMS, RJT, IDF, ISO,
